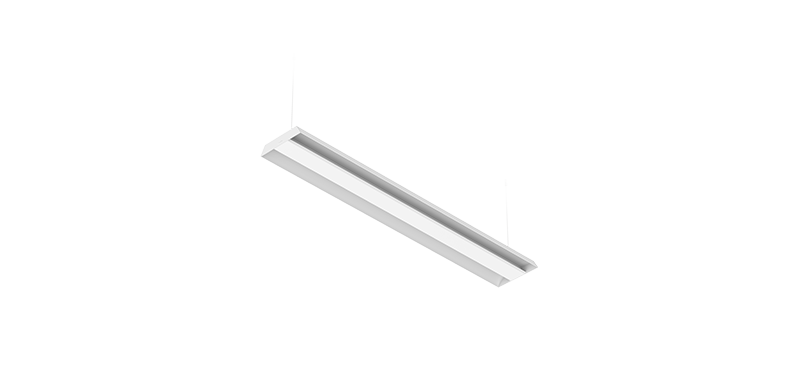

Gleamline

Gleamline

Beyond what meets the eye. The best things always remain hidden.

Gleamline is an experience like no other. It is what lighting designers mean when they say human-centric in all the way it can be. It is the perfect example of how design excellence meet optical efficiency, all hidden at plain sight, housed in a marvelously sleek, contemporary luminaire.

Download Brochure

icon
Shadow-free and well-lit

Gleamline’s indirect mode of lighting minimizes glare and harsh shadows, providing an efficient, work-positive environment

icon
Stable and flicker-free

Gleamline eliminates eye strain due to it’s consistent and stable light output, making it especially useful during video conferences

icon
Uniform and balanced

Gleamline’s excellent modelling ratio and high light uniformity on horizontal and vertical planes enhances the depth and detail of the illuminated area

icon
Calm and relaxed

Gleamline’s soft and soothing light output is gentle on the eyes, making it ideal for environments where people spend extended time

benefit image

Specifications

  • Extruded Aluminium housing and die casted endcaps duly powder coated in matt white
  • Suitable for standalone and continuous row installations
  • Driver is pre-wired up to terminal block. Integral driver for indirect and external driver box for direct/indirect with collim
  • Provision for loop in loop out for ease of wiring

Electrical data

Cat. No.VariantSystem wattage (W) +/- 10%*Mains current (A)Rated voltage (AC)Approx. weight (Kg)Case Lot (No.s)
LM96-451-060-57-DNIndirect-direct Down 4ft 60°250.112404.42
LM96-451-60DA57-DNIndirect-direct Down 4ft 60° Dali250.114.4
LM96-901-060-57-DNIndirect-direct Down 8ft 60°250.228.4
LM96-901-60DA57-DNIndirect-direct Down 8ft 60° Dali250.228.4
LM96-501-060-57-UDIndirect Up Down 4ft 60°250.134.6
LM96-501-60DA57-UDIndirect Up Down 4ft 60° Dali250.134.6
LM96-102-060-57-UDIndirect Up Down 8ft 60°250.268.6
LM96-102-60DA57-UDIndirect Up Down 8ft 60° Dali250.268.6
