Architectural lighting

Wipro’s architectural range offers versatile options that help highlight facades, columns, entryways, landscape elements, and structural lines with uniform, optical precision. With high-efficacy LEDs, robust construction, and advanced thermal management, these luminaires deliver consistent light quality while ensuring energy efficiency and long service life for installations in commercial buildings, public precincts, and urban landscapes. Tailored for dynamic illumination and design flexibility, the façade portfolio includes both mono-colour and RGBW colour-changing options that can produce more than 16 million colours and dynamic lighting scenarios to match different occasions or architectural themes. These systems are built to withstand diverse environmental conditions with dustproof and waterproof features, ensuring long-lasting outdoor performance.

Download brochure

LIGHTING FOR ARCHITECTS

day light
day light
  • Diverse style.
  • Impressive aesthetics.
  • Distinct personalities.
night
night
  • Enchanting Glow
  • Stunning Visual Effects
  • Mood Setting Ambiance
Wipro light
Wipro light
  • Completely customizable for every facade needs
  • A spectrum of stunning colours to choose from
  • Wide range of lighting configurations to suit any occassion

Arcus Prime!

Awaken the architectural wonders
Discover the secrets
logo-image
  • Striking colour effects with more than 16 million colours
  • Wipro in-house solution for a complete range of drivers and connecting accessories
  • Dynamic lighting scenarios with Wipro's in-house range of controllers
  • Make in India Products
  • Luminaires available in mono series (3000K/4000K) & colour-changing RGBW series
  • Built to last with dustproof and waterproof features
  • Optimum light distribution with reduced glare
  • Quick & versatile with ease of installation
  • High efficacy, long-life LED with better thermal management and energy savings
logo-image

Products

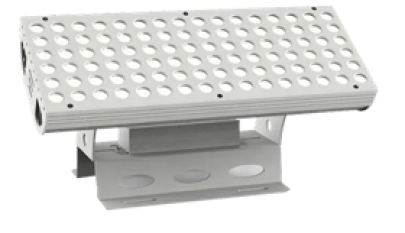

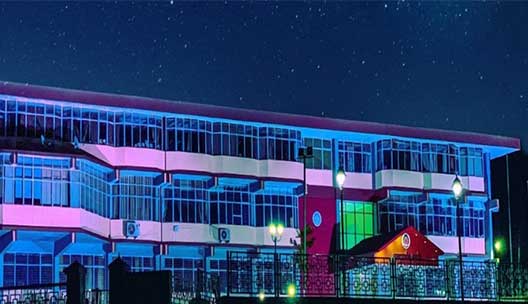

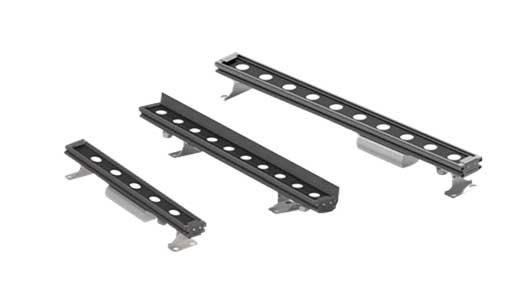

Wall Washer (Mono Series)
product-image
IK
07
IP
66
  • Extruded aluminium housing powder-coated in grey.
  • Extruded aluminium housing powder-coated in grey.
  • 55-95 Lumen per watt efficacy & CRI:70, 80
  • Comes with a toughened glass Diffuser.
  • Extruded aluminium baffle provides glare cutting and direct viewing to the light source.
Wattage
300 mm
500 mm
1000 mm
Beam angles

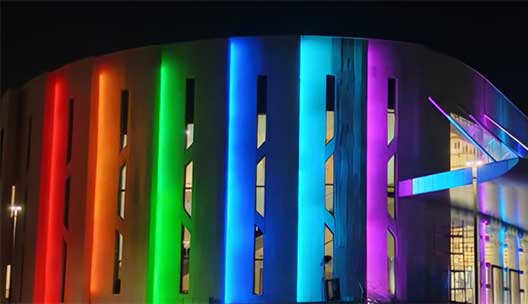

Wall Washer (RGBW Series)
product-image
IK
07
IP
66
  • Extruded aluminium housing powder-coated in grey.
  • Comes with a Non-integrated driver.
  • Up to 40 Lumen per watt efficacy & CRI:80
  • High Purity lenses Diffuser.
  • Cradle mounting arrangement
  • LED long life and better thermal management with uniform and optimum light output.
Wattage
300 mm
500 mm
1000 mm
Beam angles

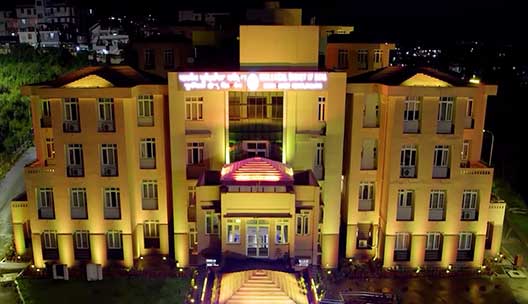

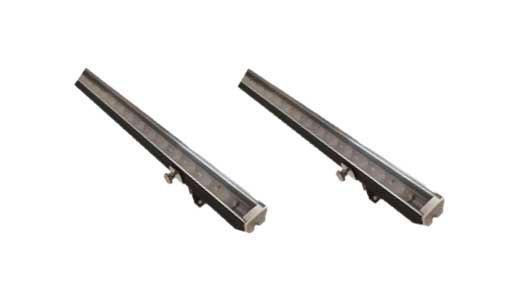

Flexible Wall washer
product-image
IK
0
IP
67
  • Solid state high brightness SMD LED chips
  • Resistant to yellowing, high temperature, corrosion, weak acid and alkali and has great flexibility.
  • Strong adhesion, good durability and high reliability.
  • Up to 110 Lumen/ Watt efficacy.
  • Minimal heat generation from the strips avoids blackening in coves.
  • It’s small in size, light in weight, flexible and easy to install.
Wattage
Mono/RGBW
Beam angles

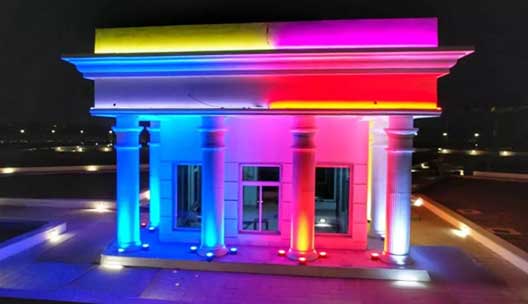

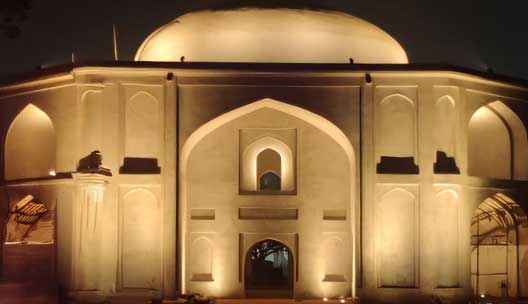

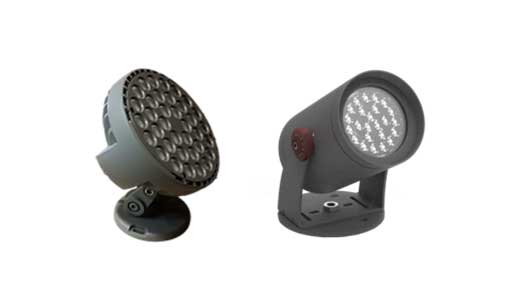

Round Flood Light (Mono Series)
product-image
IK
08
IP
66
  • Option of an integrated/Non-integrated driver in mono series
  • Extruded aluminum housing duly pure polyester powder coated Dark gray color.
  • Flexible mounting options on wall, ground & Tree Branches with Cradle base, Spike & Velcro Strap.
  • Toughened Glass diffuser.
  • 55-100 Lumen per watt efficacy & CRI :70, 80
Wattage
LF04 Round shaped
LF39 Round shaped
Beam angles
Round Flood Light (RGBW Series)
product-image
IK
08
IP
66
  • Comes with a Non-integrated driver in RGBW series.
  • Extruded aluminum housing duly pure polyester powder coated Dark gray color.
  • Flexible mounting options on wall, ground & Tree Branches with Cradle base, Spike & Velcro Strap.
  • High Purity lenses diffuser.
  • Up to 55-Lumen per watt efficacy & CRI : 80
Wattage
Wattage
Beam angles

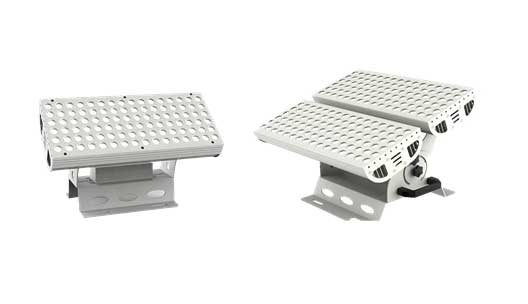

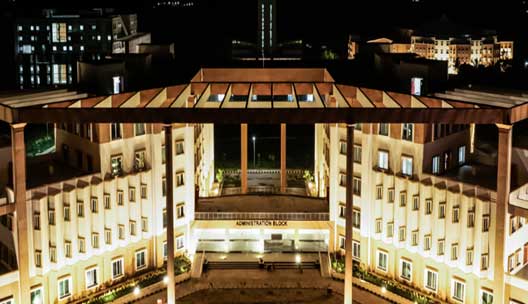

Rectangular Flood Light (Mono Series)
product-image
IK
08
IP
66
  • Comes with a Non-integrated driver in the Mono series.
  • Extruded aluminium housin,g duly pure polyester powder coated, Dark grey colour.
  • High-purity lenses diffuser.
  • Up to 55 Lumen per watt efficacy & CRI > 80
  • Desired light output with uniform light distribution.
  • Uniform and optimum light output. High efficacy and energy savings.
Wattage
LF27 Rectangular
LF28 Rectangular
Beam angles
Rectangular Flood Light (RGBW Series)
product-image
IK
08
IP
66
  • Comes with a Non-integrated driver in RGBW series.
  • Extruded aluminum housing duly pure polyester powder coated Dark gray color.
  • High Purity lenses diffuser.
  • Up to 55 Lumen per watt efficacy & CRI > 80
  • Desired light output with uniform light distribution.
  • Uniform and optimum light output. High efficacy and energy savings.
Wattage
LF27 Rectangular
LF28 Rectangular
Beam angles

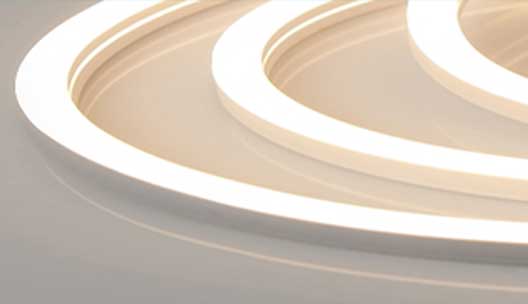

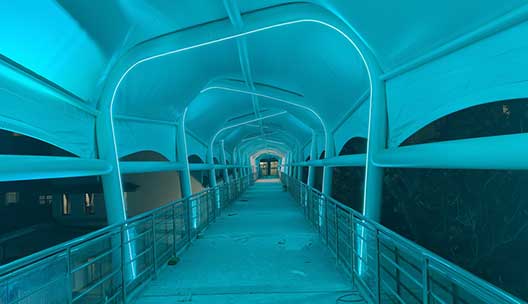

Neon Flexible Light (Mono Series)
product-image
IK
0
IP
67
  • Silicon extrusion with high-efficiency, high-grade appearance, soft bend, flexible, frosted, encapsulated & LED light lines.
  • Saltwater-resistant & Temporary impression protection
  • Solvent-resistant and UV protected.
  • 50,000 hours lifespan and Low installation depth with homogeneous and dot-free illumination
  • Non-integral type 24VDC driver for mono strip.
  • Up to 57 Lumen/Watt efficiency & CRI 80.
Type
Length
Wattage

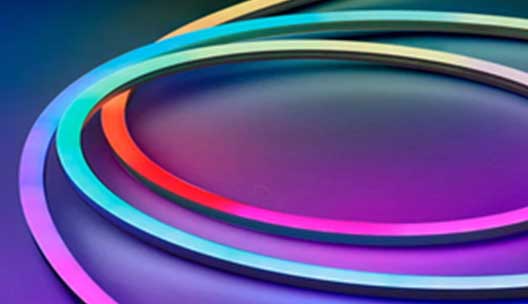

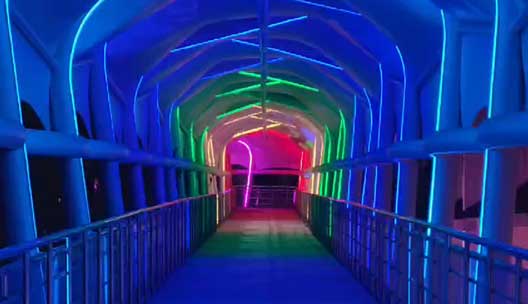

Neon Flexible Light (RGBW Series)
product-image
IK
1
IP
67
  • Silicon extrusion with high-efficiency, high-grade appearance, soft bend, flexible, frosted, encapsulated & LED light lines.
  • Saltwater-resistant & Temporary impression protection
  • Solvent-resistant and UV protected.
  • 50,000 hours lifespan and Low installation depth with homogeneous and dot-free illumination
  • Non-integral type 24VDC driver for mono strip.
  • Up to 28 Lumen/Watt efficiency & CRI 80.
Type
Length
Wattage

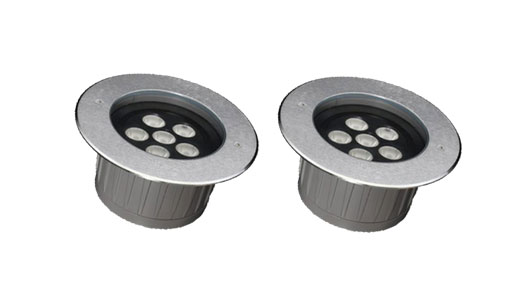

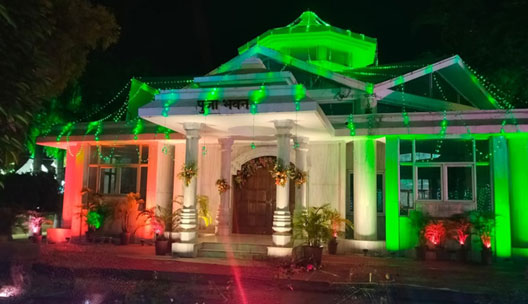

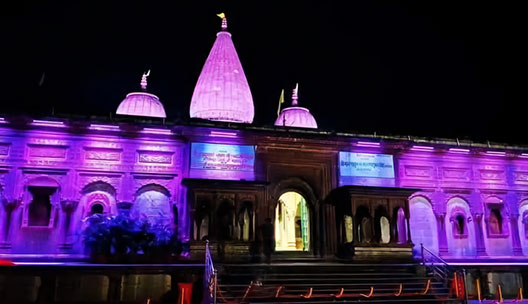

Inground Light (Mono Series)
product-image
IK
10
IP
67
  • Al die-cast heatsink, Engineering Plastic cover in black with SS ring
  • High Purity lenses with Tempered frosted step Glass.
  • Walkover-type fixture
  • Comes with a Non-integrated driver.
  • Up to 50 Lumen/Watt efficacy & CRI >80.
  • Uniform and optimum light output. And better thermal Management.
Wattage
Wattage
Beam angles
Inground Light (RGBW Series)
product-image
IK
10
IP
67
  • Al die-cast heatsink, Engineering Plastic cover in black with SS ring
  • High Purity lenses with Tempered frosted step Glass.
  • Walkover-type fixture
  • Comes with a Non-integrated driver.
  • Up to 35 Lumen/Watt efficacy & CRI >80.
  • Uniform and optimum light output. And better thermal Management.
Wattage
Wattage
Beam angles

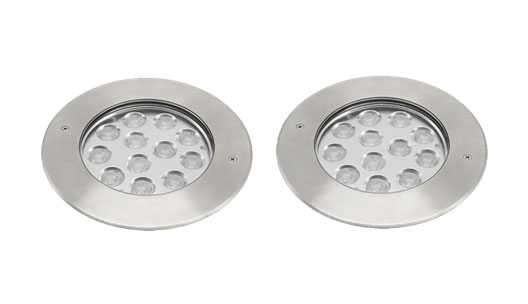

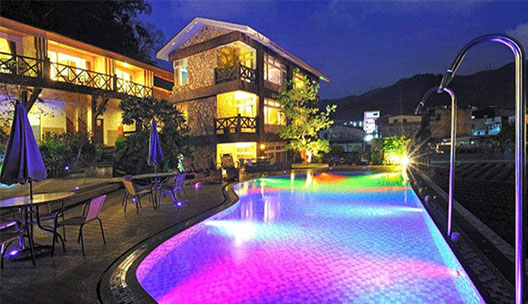

Underwater Light
product-image
IK
08
IP
68
  • Available in Warm white and RGBW.
  • Hard Chrome plated molding stainless steel.
  • Hard Chrome plated molding stainless steel.
  • Must be installed under the water to prevent the light from burning up because of overheating.
  • External CV driver.
  • Tempered Glass diffuser
  • Up to 60 Lumen/Watt efficacy.
Wattage
Mono/RGBW
Beam angles

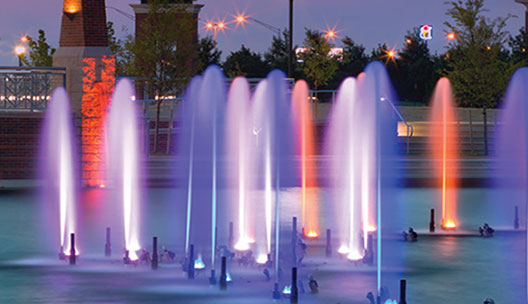

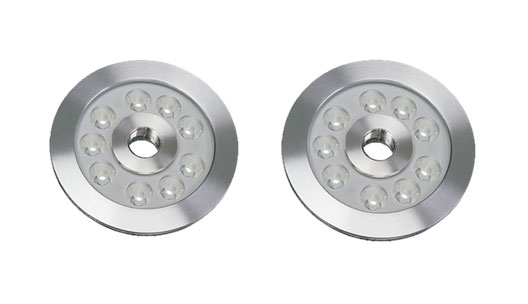

Fountain Light
product-image
IK
08
IP
68
  • Available in Warm white and RGBW.
  • Hard Chrome plated molding stainless steel.
  • Glass and housing Silicon sealed.
  • Must be installed under the water to prevent the light from burning up because of overheating.
  • External CV driver.
  • Tempered Glass diffuser
  • Up to 60 Lumen/Watt efficacy.
Wattage
Mono/RGBW
Beam angles

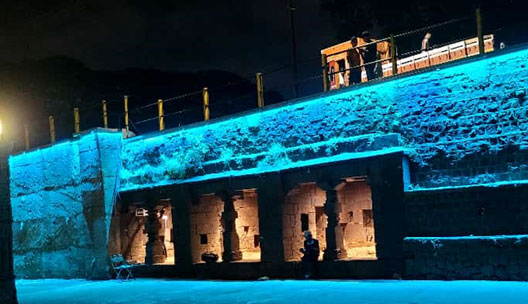

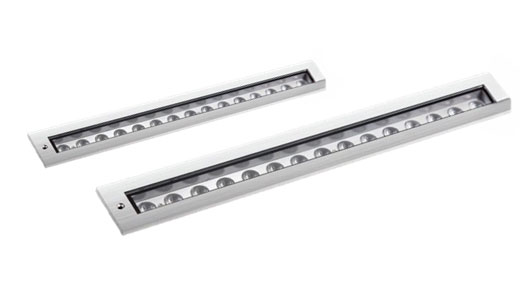

Linear Inground Light
product-image
IK
10
IP
68
  • It must be installed under the water to prevent the light from burning up because of overheating.
  • Aluminium Housing with stainless steel plate
  • Tempered Frosted Step Glass
  • Up to 60 Lumen/ Watt efficacy.
  • High Purity lenses diffuser
Wattage
Mono/RGBW
Beam angles

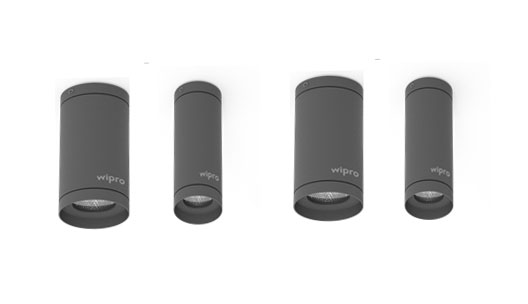

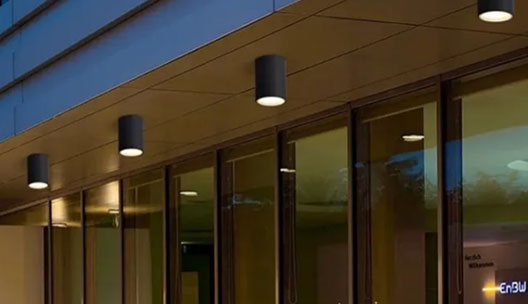

Downlight Light
product-image
IK
06
IP
65
  • High-efficiency, long-life LEDs
  • Technology edge with high efficacy LEDs
  • Best in class with optimal light output
  • Ensures in screen protection & Vandal resistant
  • Ease in installation & maintenance
  • Extruded aluminum housing duly pure polyester powder coated Dark gray color
Beam angles

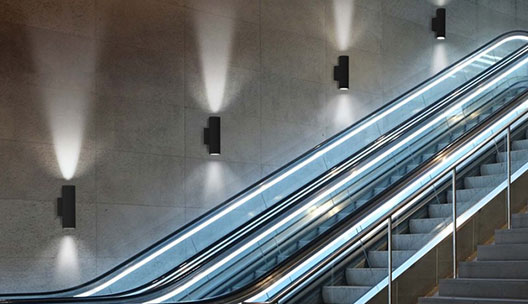

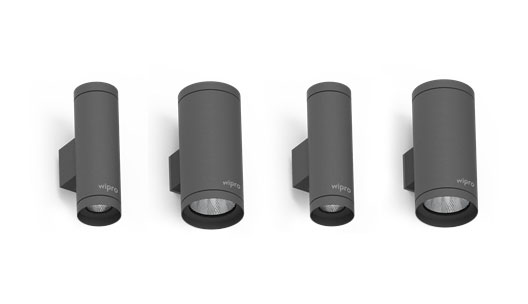

Wall Light
product-image
IK
06
IP
65
  • High-efficiency, long-life LEDs
  • Technology edge with high efficacy LEDs
  • Best in class with optimal light output
  • Ensures in screen protection & Vandal resistant
  • Ease in installation & maintenance
  • Extruded aluminum housing duly pure polyester powder coated Dark gray color
Wattage
Wattage
Beam angles

Elevate your façade lighting to the next level ! With not only luminaires but with Wipro’s end-to-end solutions

level-image

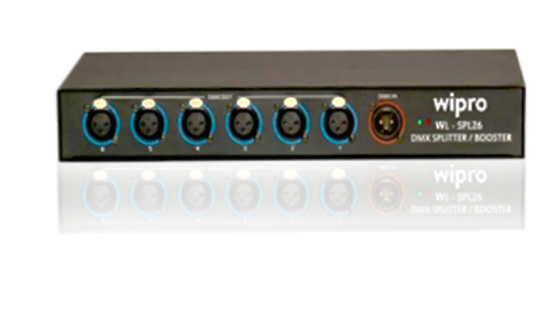

WL-SPL 26 DMX
Splitter & Booster

6-output DMX splitter with DMX signal boosting

level-image
level-image
World-class technologies,
  • MS housing
  • The output terminals are optically isolated from the input
  • Extruded1:6 Way DMX splitter/booster aluminium housing powder-coated in grey
  • Refined and filtered data
  • Cable 3 core 0.75 sq mm
  • Surface/rack/floor/ceiling mountable with provided mounting accessories

Façade Offerings

Its simple, easy and fast.
scenarios

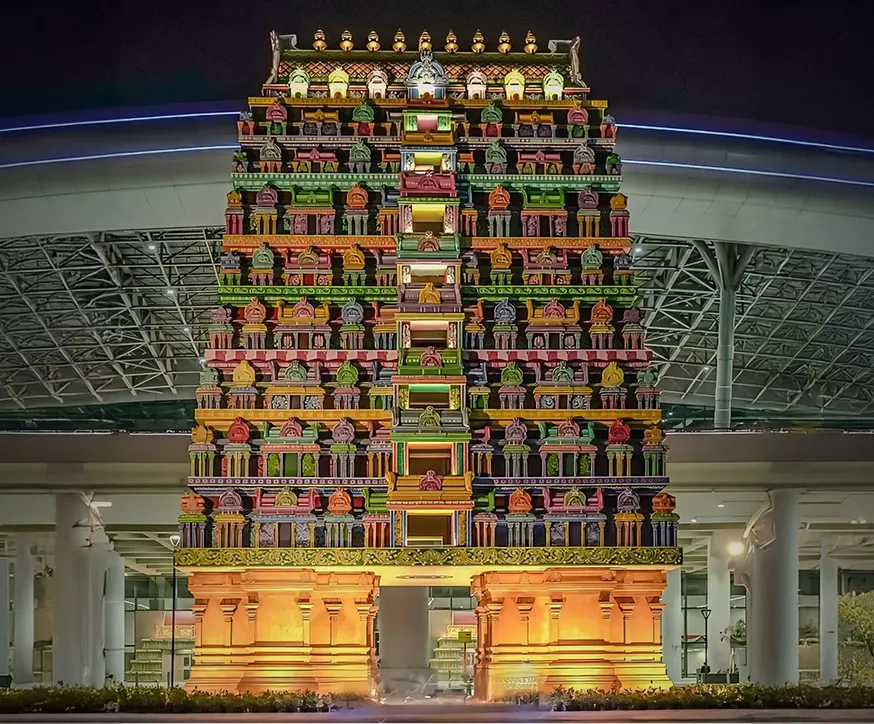

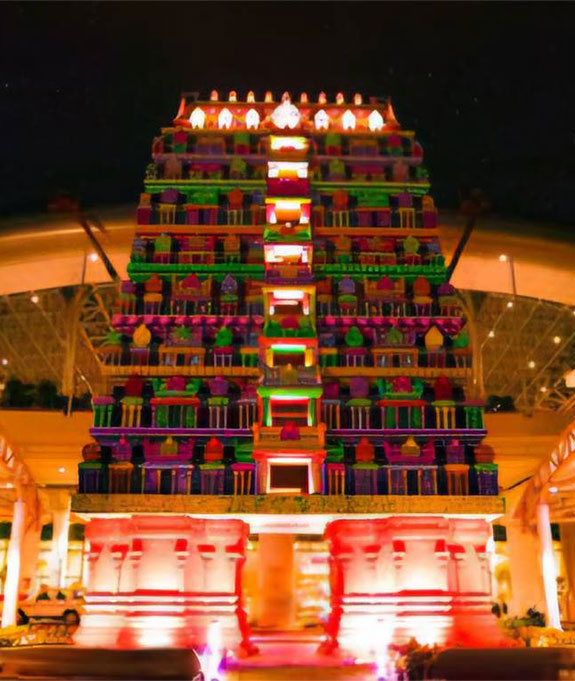

Tiruchirappalli International Airport, Trichy
scenarios

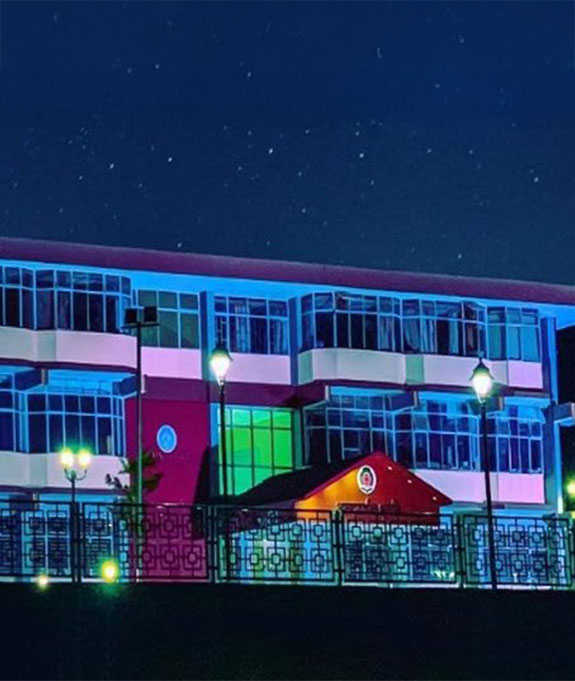

Palampur University, Himachal Pradesh
scenarios

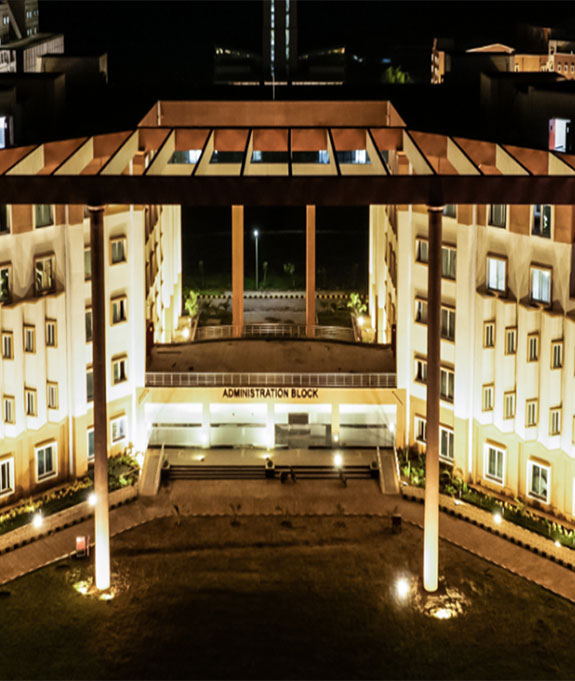

Indian Institute of Technology, Bhubaneshwar
scenarios
Indian Institute of Technology, Dharwad
scenarios

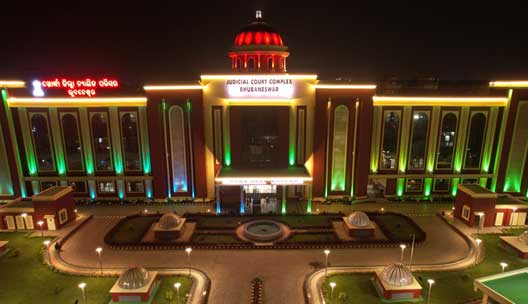

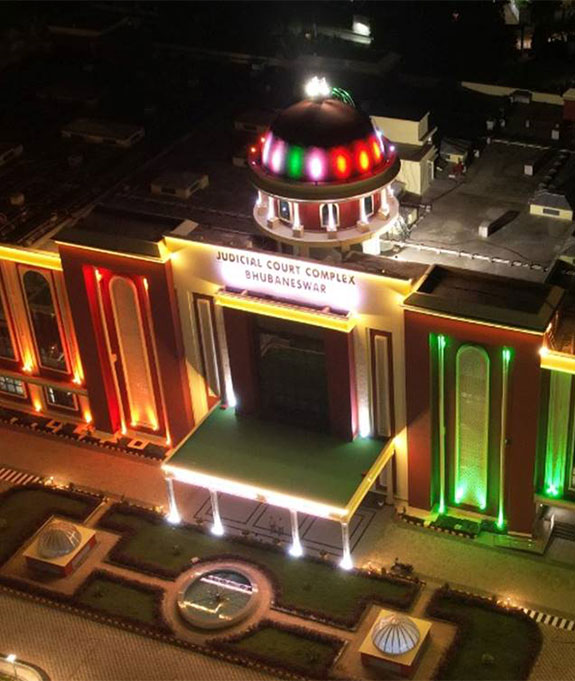

Judicial Court Complex, Bhubaneshwar
scenarios

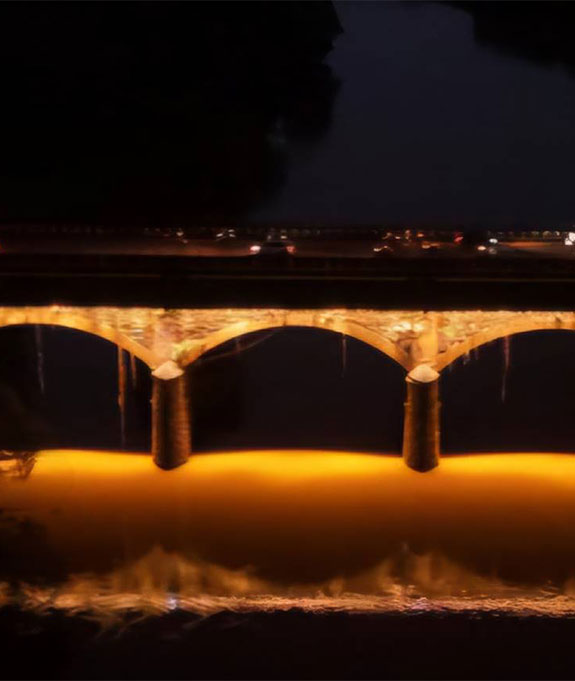

Panch Ganga Ghat Bridge, Kolhapur, Maharashtra
scenarios
Dell Technologies, Noida
scenarios

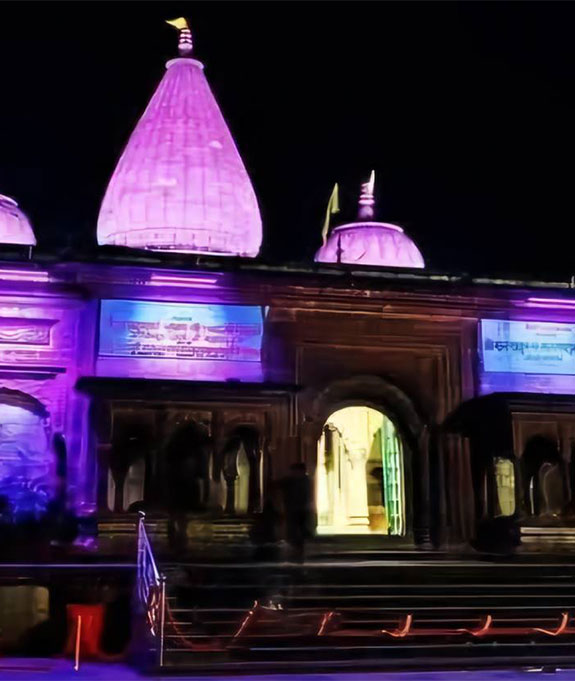

Venkatesh Temple, Satna, Madhya Pradesh
scenarios

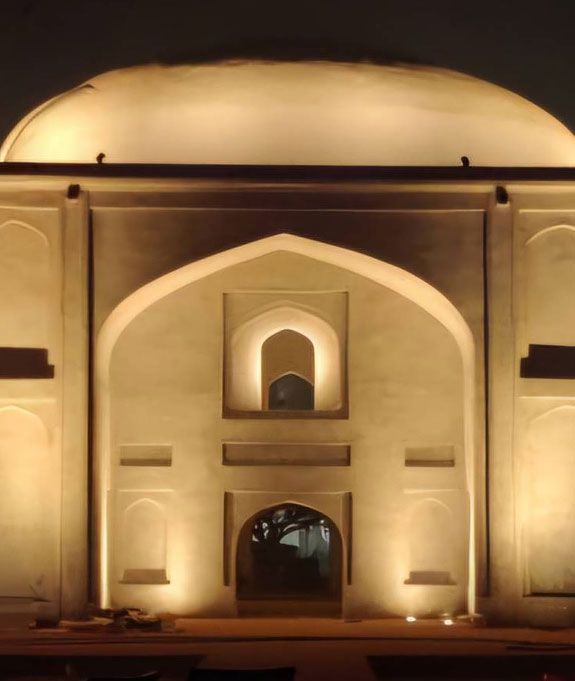

Hadira Tomb, Sultanpur
scenarios

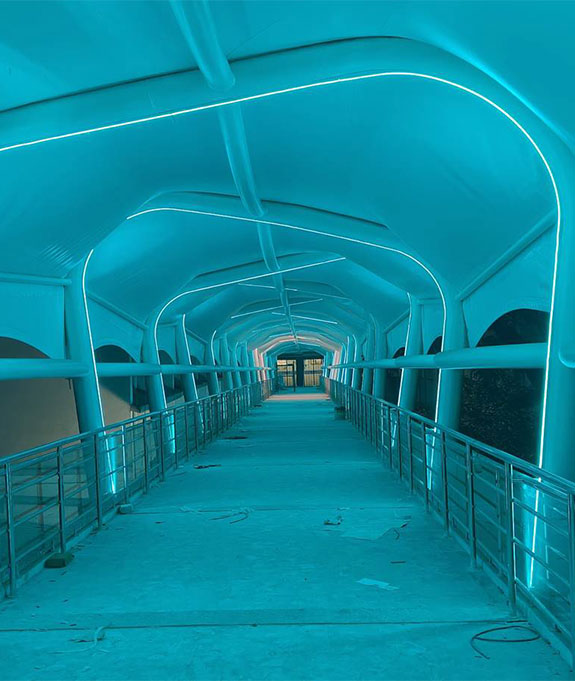

Skywalk Bridge, Nagpur
scenarios
National Library, Kolkata
