SolaRISE

RISE above the Conventional
More Power to Solar
Partners with you for a sustainable future
In a tropical country like ours, we have under utilised the potential of promising renewable source of energy. Use of Solar energy for power generation has been predominantly limited to large scale government projects and remote location installations. With SolaRISE we aim to make Solar power a viable energy solution for all.
Holistic Approach

Users need simple means to use solar systems. Our answer is to take a holistic approach and create integrated, tailored solutions. These combine strong technical consultancy approach, quality components and engineering, and

Strong Design and Technology Orientation

It is the ratio of the total luminous flux emitted to the total input lamp power (lamp wattage). Luminous efficacy = Luminous flux/ Wattage

Solution that benefits all

Solar energy solution is now simplified and has brought down the overall project costs. A standard installation offers a payback of around 4-5 years on the Capex, with a very minimal Opex. This has helped make Solar Power Solutions more affordable and workable for many applications.

Commitment of Wipro

Wipro has been always in the forefront to deliver technologically advanced, innovative and efficient solutions. With SolaRISETM, we offer solar power solutions that are application oriented, more adaptable, reliable and easy to use.

[All in One]
INTEGRATED SOLAR STREETLIGHTS
Integrated Smart Design,
Reliable Operation
  • Ecofriendly with integrated technology
  • Modern design
  • Enhanced efficiency and intelligence
  • Easy and quick installation
  • Higher reliability, long service life

All-in-one Streetlights make solar solutions more efficient and easy to adapt. No longer you have the bulky solar photo voltaic (PV) panel and lead acid battery box mounted on the poles along with the street light.

Integrated as one single unit, this solar streetlight houses all the components like the solar PV panel, charge controller, driver and battery inside the streetlight itself. It looks super sleek and trendy, just perfect for any urban landscape.

Solar Streetlights has gone through many steps of transformation. Every advancement in technology has made these streetlights more efficient and reliable in operation. Wipro SolaRISETM drives this journey of evolution further with latest range of streetlights, designed for the modern infrastructure in the country.
Intelligent & Future-Ready
Exploring the world of future ready lighting.
When you speak of factory lighting, the first thing you think about is well-lit spaces to ensure worker safety.
As a family for next-gen solar luminaires, all-in-one streetlights are far more efficient and also reliable in operation. They use specially designed mono crystalline photo voltaic panels to enhance the energy generation, have better battery life and are smart and intelligent, which helps optimize the energy usage.
LED

The LEDs use special lenses providing better optics and street lighting distribution. Available in different wattages, these streetlights are perfectly suited for a variety of applications.

Mono-Crystalline Silicone Solar Panel

The mono crystalline panel top efficiency, enhances the energy conversion rate in the streetlight. It helps in faster charging and increasing the overall efficiency.

Lithium Ferro-Phosphate Battery

The streetlights use high power compact design, high performance lithium iron phosphate batteries which are tested to perform under high temperatures. These also have higher life span of up to 2000 cycles as compared to the regular offering around 500 to 1000 charging cycles.

Intelligent Controller and Sensor

The efficiency of the street lights is maximised using a sensor and an intelligent controller, which is programmed to regulate the light output depending on movement detection and time schedule.

The streetlight usually operates on 30% intensity, and glows with full intensity when the sensors detect movement. Time schedule model operates on 100X intensity for first 3 hours, 65X intensity for next 2 hours and for rest of the time at 30X intensity.

Intelligent controls, enhanced savings
Intelligent controls, enhanced savings
Day

During daytime, solar energyis absorbed by the PV panel andtransferred to the intelligent controller.

Controller converts it into electricalenergy and charges the batteries.

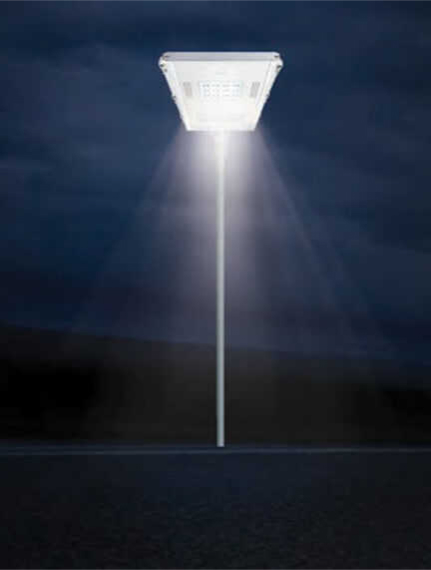

Night

Controller detects darkness andilluminates the LEDs

The controller also regulates theintensities of the LEDs based on theprogrammed algorithms

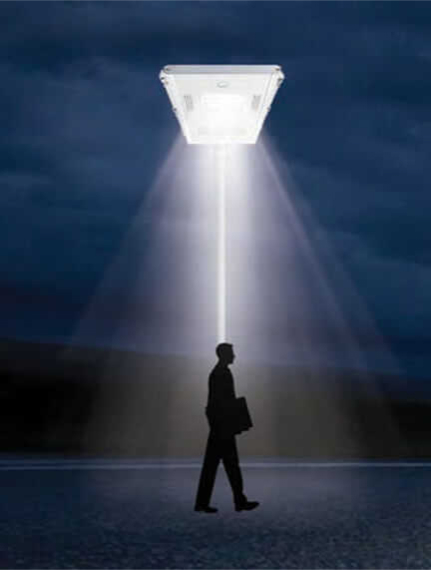

Movement Detection

The sensor detects movement andincreases the intensity of the LEDscreating a safe and effective lightingenvironment.

Day
Night
Movement Detection
Innovative, Smart and Green technology-based lighting solutions
Different wattages have different characteristics
12W
15W, 18W 20W 25W
30W, 40W
50W, 60W
120W
All-in-one solarLED streetlight
SPECIFICATIONS
  • Aesthetic and compact design in extruded aluminium construction
  • 150Wp monocrystalline silicon panel & 120 W LED
  • 12.8V 90Ah Lithum (LifePo4) battery
  • High efficiency SMD LED with CRI >80, lighting system efficiency upto120 Lm/W, CCT – 6000o K to 6500oK
  • Full Power upto 12 hrs; Saving mode upto 48 hrs
  • MPPT charge controller with 90 to 96% efficiency
  • Secondary lens optics for streetlighting application
INSTALLATION
Pole Height Recommendations:
120W | 9-12m
Suitable for external pipe dia of 40 to100 mm
*Also available in other CCT options.
*Hybrid (AC-DC) option available on request.
IP 65 IP66 is available on request
ELECTRICAL DATA
System Voltage
12V/24V
Output Power
50W/12V, 100W/24V
Output Current
0.15A – 3.3A
No load loss
9mA/12V, 12mA/24V
Charging Current
15A
Solar Input Voltage
< 55V
Over Voltage Protection
16V, x 2/24V
Charging Voltage Limit
15.5V, x2/24V
PRODUCT CODE & DIMENSIONS
LR14-141-XXX-65-XX
12W
550 x 310 x 45 mm
All dimensions are in mm. Tolerance: ± 2mm
Solar & LED are ever improving & evolving technologies. Wipro is committed to bring you the best in Solar & LED technologies.

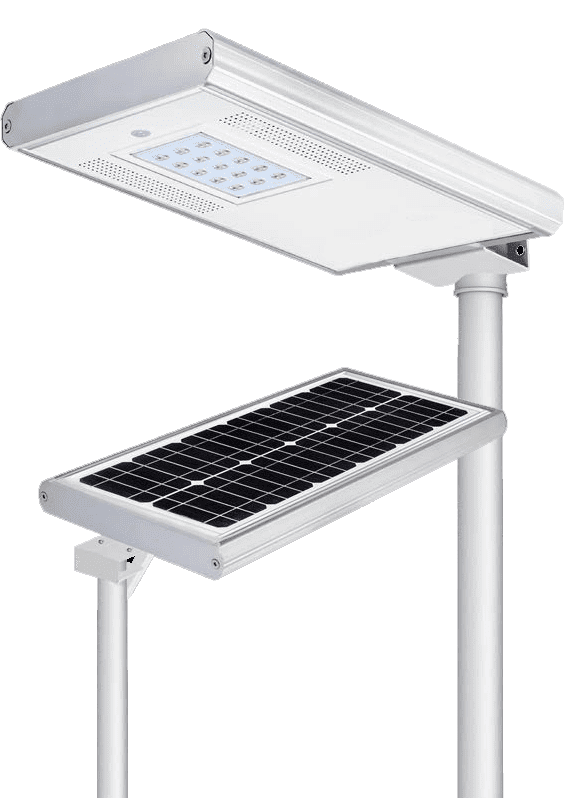

All-in-one solarLED streetlight
SPECIFICATIONS
  • Aesthetic and compact design in extruded aluminium construction
  • 15W | 30W monocrystalline silicon panel & 13Ah Lithum (LifePo4) battery
  • 18W | 35W monocrystalline silicon panel & 16Ah Lithum (LifePo4) battery
  • 20W | 40W monocrystalline silicon panel & 21Ah Lithum (LifePo4) battery
  • 25W | 50W monocrystalline silicon panel & 22Ah Lithum (LifePo4) battery
  • CRI >80, lighting efficiency upto 120 Lm/W, CCT – 6000 to 6500 Deg K
  • Secondary lens optics for streetlighting application
  • 12.8V 12Ah Lithum (LifePo4) battery
  • Full Power upto 12 hrs, Saving mode upto 48 hrs
  • Integral PIR sensor
  • MPPT charge controller with 90 to 96% efficiency
INSTALLATION
Pole Height Recommendations:
15W | 3-4m | 18W and 20 W | 5-6m | 25W | 7-8m
Suitable for external pipe dia of 40 to100 mm
*Also available in other CCT options.
*Hybrid (AC-DC) option available on request.
IP 65 IP66 is available on request
ELECTRICAL DATA
System Voltage
12V/24V
Output Power
50W/12V, 100W/24V
Output Current
0.15A – 3.3A
No load loss
9mA/12V, 12mA/24V
Charging Current
15A
Solar Input Voltage
< 55V
Over Voltage Protection
16V, x 2/24V
Charging Voltage Limit
15.5V, x2/24V
PRODUCT CODE & DIMENSIONS
LR14-221-XXX-65-XX
15W
495 x 355 x 80 mm
LR14-281-XXX-65-XX
18W
740 x 305 x 140 mm
LR14-301-XXX-65-XX
20W
940 x 305 x 140 mm
LR14-361-XXX-65-XX
25W
960 x 310 x 50 mm
All dimensions are in mm. Tolerance: ± 2mm
Solar & LED are ever improving & evolving technologies. Wipro is committed to bring you the best in Solar & LED technologies.

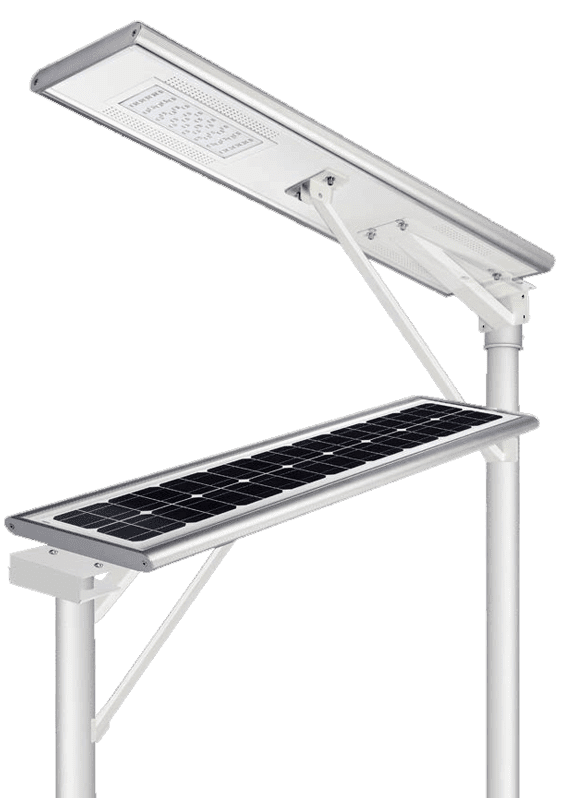

All-in-one solarLED streetlight
SPECIFICATIONS
  • Aesthetic and compact design in extruded aluminium construction
  • 30W | 60W monocrystalline silicon panel & 30 [15x2] W LED
  • 40W | 80W monocrystalline silicon panel & 40 [20x2] W LED
  • CRI >80, lighting efficiency upto 120 Lm/W, CCT – 6000 to 6500 Deg K
  • 30W | 12.8V 28Ah Lithum (LifePo4) battery
  • 40W | 12.8V 35Ah Lithum (LifePo4) battery
  • Full Power upto 12 hrs; Saving mode upto 48 hrs
  • Integral PIR sensor
  • MPPT charge controller with 90 to 96% efficiency
INSTALLATION
Pole Height Recommendations:
30W | 6-7m | 40W | 6-7m
Suitable for external pipe dia of 40 to100 mm
*Also available in other CCT options.
*Hybrid (AC-DC) option available on request.
IP 65 IP66 is available on request
ELECTRICAL DATA
System Voltage
12V/24V
Output Power
50W/12V, 100W/24V
Output Current
0.15A – 3.3A
No load loss
9mA/12V, 12mA/24V
Charging Current
15A
Solar Input Voltage
< 55V
Over Voltage Protection
16V, x 2/24V
Charging Voltage Limit
15.5V, x2/24V
PRODUCT CODE & DIMENSIONS
LR14-441-XXX-65-XX
30W
1120 x 305 x 140 mm
LR14-591-XXX-65-XX
40W
1120 x 305 x 140 mm
All dimensions are in mm. Tolerance: ± 2mm
Solar & LED are ever improving & evolving technologies. Wipro is committed to bring you the best in Solar & LED technologies.

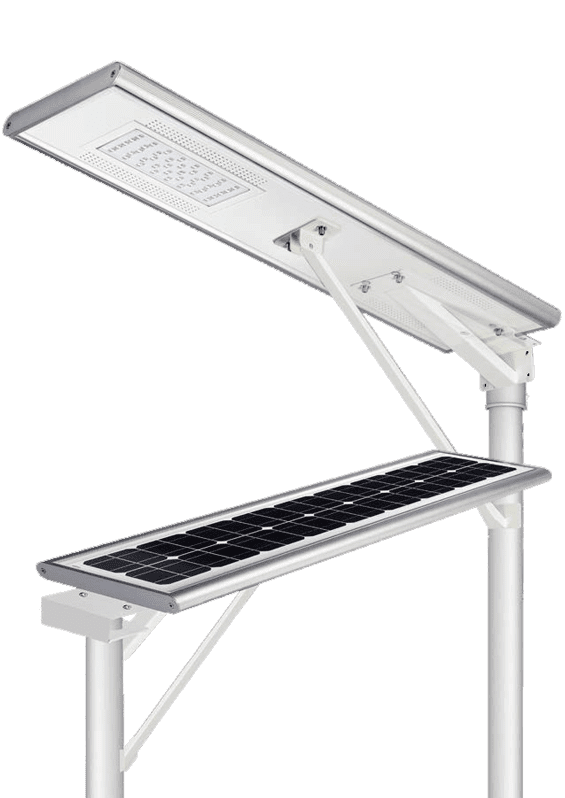

All-in-one solarLED streetlight
SPECIFICATIONS
  • Aesthetic and compact design in extruded aluminium construction
  • 50W | 80W monocrystalline silicon panel & 50 W LED
  • 60W | 90W monocrystalline silicon panel & 60 W LED
  • CRI >80, lighting efficiency upto 120 Lm/W, CCT – 6000 to 6500 Deg K
  • 50W | 12.8V 44Ah Lithum (LifePo4) battery
  • 60W | 12.8V 52Ah Lithum (LifePo4) battery
  • Full Power upto12 hrs; Saving mode upto 48 hrs
  • MPPT charge controller with 90 to 96% efficiency
INSTALLATION
Pole Height Recommendations:
50W | 6-7m | 60W | 6-7m
Suitable for external pipe dia of 40 to100 mm
*Also available in other CCT options.
*Hybrid (AC-DC) option available on request.
IP 65 IP66 is available on request
ELECTRICAL DATA
System Voltage
12V/24V
Output Power
50W/12V, 100W/24V
Output Current
0.15A – 3.3A
No load loss
9mA/12V, 12mA/24V
Charging Current
15A
Solar Input Voltage
< 55V
Over Voltage Protection
16V, x 2/24V
Charging Voltage Limit
15.5V, x2/24V
PRODUCT CODE & DIMENSIONS
LR14-721-XXX-65-XX
50W
1120 x 440 x 140 mm
LR14-841-XXX-65-XX
60W
1120 x 440 x 140 mm
All dimensions are in mm. Tolerance: ± 2mm
Solar & LED are ever improving & evolving technologies. Wipro is committed to bring you the best in Solar & LED technologies.

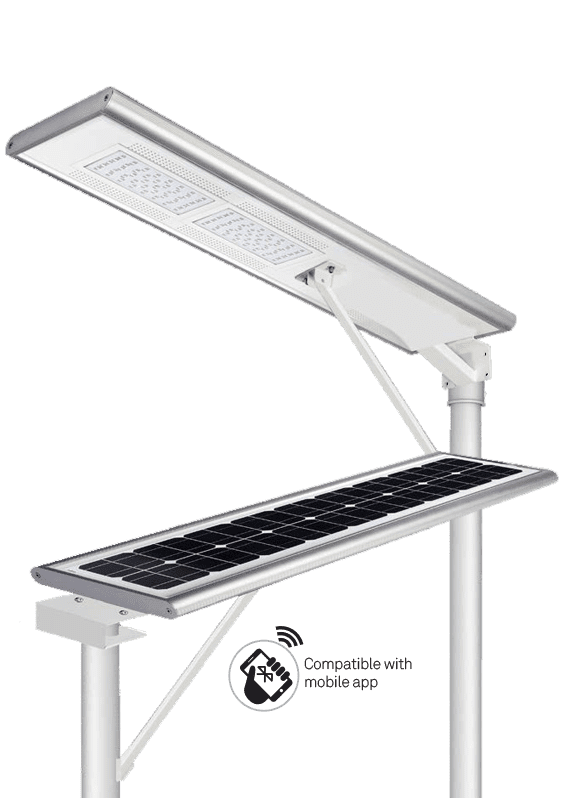

All-in-one solarLED streetlight
SPECIFICATIONS
  • Aesthetic and compact design in extruded aluminium construction
  • 150W monocrystalline silicon panel & 120 W LED
  • CRI >80, lighting efficiency upto 120 Lm/W, CCT – 6000 to 6500 Deg K
  • 12.8V 90Ah Lithum (LifePo4) battery
  • Full Power upto 12 hrs; Saving mode upto 48 hrs
  • MPPT charge controller with 90 to 96% efficiency
INSTALLATION
Pole Height Recommendations:
120W | 9-12m
Suitable for external pipe dia of 40 to100 mm
*Also available in other CCT options.
*Hybrid (AC-DC) option available on request.
IP 65 IP66 is available on request
ELECTRICAL DATA
System Voltage
12V/24V
Output Power
50W/12V, 100W/24V
Output Current
0.15A – 3.3A
No load loss
9mA/12V, 12mA/24V
Charging Current
15A
Solar Input Voltage
< 55V
Over Voltage Protection
16V, x 2/24V
Charging Voltage Limit
15.5V, x2/24V
PRODUCT CODE & DIMENSIONS
LR14-172-XXX-65-XX
120W
1670 x 465 x 45 mm
All dimensions are in mm. Tolerance: ± 2mm
Solar & LED are ever improving & evolving technologies. Wipro is committed to bring you the best in Solar & LED technologies.
SolaRISETM Applications
Modern designs with enhanced efficiency and intelligence.
Better technology, sleek design and superb efficiency make all-in-one Solar Streetlights suitable for many lighting applications. With a wide range of wattages, these streetlights adapt to various areas and deliver a clean and green solution.
    Meeting Room Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Hospitals Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Factories Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Gas Stations Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Apartments Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Hotels Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Universities Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Corporate Campuses Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Meeting Room Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Hospitals Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Factories Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Gas Stations Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Apartments Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Hotels Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Meeting Room Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Meeting Room Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Corporate Campuses Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Corporate Campuses Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Corporate Campuses Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
    Corporate Campuses Experience state-of-the-art lighting with SolaRISETM, a viable energy solution for all.
DRAG
Installation of solar street light
Its simple, easy and fast.
Step One
Step Two
Step Three
Lamp test before installation

Firstly , put light in a level area such that solar panel should be covered than switch on the light so that you can see 100% light in a few seconds

Lamp test before installation

Firstly , put light in a level area such that solar panel should be covered than switch on the light so that you can see 100% light in a few seconds

Lamp test before installation

Firstly , put light in a level area such that solar panel should be covered than switch on the light so that you can see 100% light in a few seconds

Lamp test before installation

Firstly , put light in a level area such that solar panel should be covered than switch on the light so that you can see 100% light in a few seconds

Lamp test before installation

Pick up the lamp and face solar panel to the sunshine. The light will disappear at once. Then cover the solar panel. Led light will light again

Lamp test before installation

Pick up the lamp and face solar panel to the sunshine. The light will disappear at once. Then cover the solar panel. Led light will light again

Lamp test before installation

Test the PIR sensor, we need to cover the sensor when it’s in 100% lighting, wait for 40 seconds and it will become 30% light

Lamp test before installation

Test the PIR sensor, we need to cover the sensor when it’s in 100% lighting, wait for 40 seconds and it will become 30% light

Charge fully before installation

After the lamp is successfully tested, charge the lamp with good sunshine for 2-3 days continuously in order to keep long backup time for future. The following procedure should be followed for 2-3 days until the lamp is fully charged.

Charge fully before installation

After the lamp is successfully tested, charge the lamp with good sunshine for 2-3 days continuously in order to keep long backup time for future. The following procedure should be followed for 2-3 days until the lamp is fully charged.

Charge fully before installation

After the lamp is successfully tested, charge the lamp with good sunshine for 2-3 days continuously in order to keep long backup time for future. The following procedure should be followed for 2-3 days until the lamp is fully charged.

Installation

Firstly, prepare the lamp and suitable pole in an open area with all tools and parts ready. Fix two screws in one side, and leave two screws for putting pole inside

Installation

Firstly, prepare the lamp and suitable pole in an open area with all tools and parts ready. Fix two screws in one side, and leave two screws for putting pole inside

Installation

Firstly, prepare the lamp and suitable pole in an open area with all tools and parts ready. Fix two screws in one side, and leave two screws for putting pole inside

Installation

Firstly, prepare the lamp and suitable pole in an open area with all tools and parts ready. Fix two screws in one side, and leave two screws for putting pole inside

Installation

Second, put the pole into the hoop. Fix other two screws. Then fix tightly four screws by hex socket and wrench till the hoop cannot move any more (0.5m is the usual distance between lamp and pole top)

Installation

Second, put the pole into the hoop. Fix other two screws. Then fix tightly four screws by hex socket and wrench till the hoop cannot move any more (0.5m is the usual distance between lamp and pole top)

Installation

Second, put the pole into the hoop. Fix other two screws. Then fix tightly four screws by hex socket and wrench till the hoop cannot move any more (0.5m is the usual distance between lamp and pole top)

Installation

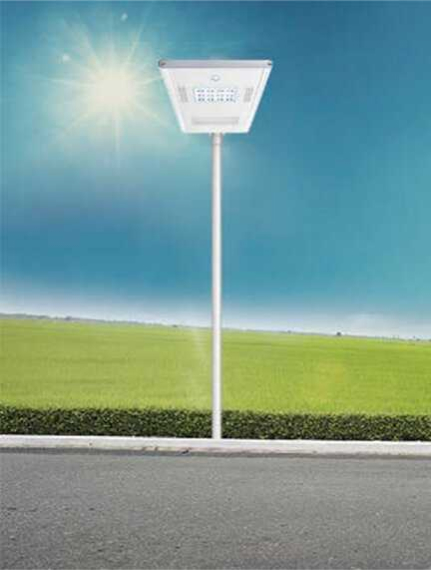

Turn ON the lamp and install the pole in best place.

Cross
Indoor Outdoor
