Mollis
Increasing need for energy optimization demands advanced and relaible solutions for saving energy for lighting modern offices. Downlighters are growing more and more popular as they deliver significant energy savings and also are suitable for wide range applications. Wipro lighting Launches MOLLIS range with high performance and efficiency, adding options in diffuser for visual comfort.

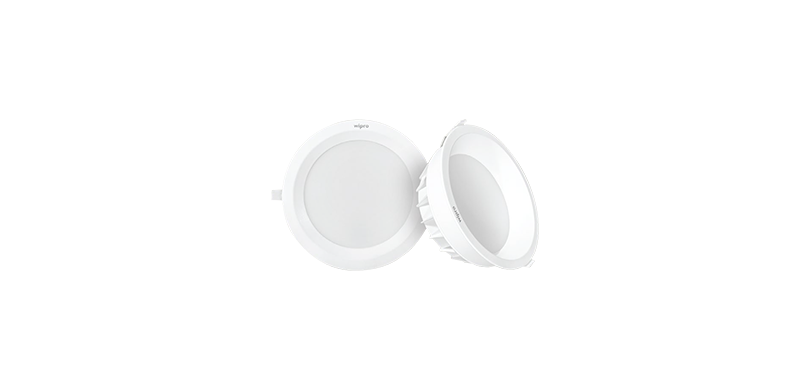

Trendy and Aesthetically designed Downlighter, with power packed performance min 100 lumens per watt, also suitable for refurbishment project. Cut out 168 mm dia.
Trendy and Aesthetically designed Downlighter, inset diffuser of -30 mm. Power packed performance min 100 lumens per watt , THD <10%, High efficiency LED, ensures optimum light output.
Download Brochure
The right amount of light, just perfect for the application. Helps to reduce quantity/wattage, thus generating operational cost.
Ensure right color appearance of the object.
High transmitivity Diffuser (HET) delivers excellent optical performance with uniform and glare-free lighting.
Specially designed for effective thermal management and driver per-wired upto terminal block with plug in connector for long service life and consistent performance.
Ensure high performance and efficiency of luminaire.
Mollis | |||||
|---|---|---|---|---|---|
| Cat. No.* | System Wattage (W) | Rated Voltage (V) | Mains Current (A) | Cut Out Diameter (mm) | Case Lot (in nos.) |
| LD06-670-XXX-57-XX / 40-XX | 6 | 240 | 0.03 | 110 | 20 |
| LD06-111-XXX-57-XX / 40-XX | 9 | 240 | 0.04 | 110 | 20 |
| LD06-151-XXX-57-XX / 40-XX | 12 | 240 | 0.05 | 110 | 20 |
| LD06-171-XXX-57-XX / 40-XX | 15 | 240 | 0.07 | 145 | 16 |
| LD06-221-XXX-57-XX / 40-XX | 18 | 240 | 0.08 | 145 | 16 |
| LD06-301-XXX-57-XX / 40-XX | 24 | 240 | 0.11 | 168 | 12 |
MOLLIS for Refurbishment | |||||
|---|---|---|---|---|---|
| Cat. No.* | System Wattage (W) | Rated Voltage (V) | Mains Current (A) | Cut Out Diameter (mm) | Case Lot (in nos.) |
| LD06-151-XXX-57-RF / 40-RF | 12 | 240 | 0.05 | 168 | 12 |
| LD06-171-XXX-57-RF / 40-RF | 15 | 240 | 0.07 | 168 | 12 |
| LD06-221-XXX-57-RF / 40-RF | 18 | 240 | 0.08 | 168 | 12 |
MOLLIS X | |||||
|---|---|---|---|---|---|
| Cat. No.* | System Wattage (W) | Rated Voltage (V) | Mains Current (A) | Cut Out Diameter (mm) | Case Lot (in nos.) |
| LD06X-670-XX-57-XX / 40-XX | 6 | 240 | 0.03 | 115 | 20 |
| LD06X-111-XX-57-XX / 40-XX | 9 | 240 | 0.04 | 115 | 20 |
| LD06X-151-XX-57-XX / 40-XX | 12 | 240 | 0.05 | 115 | 20 |
| LD06X-171-XX-57-XX / 40-XX | 15 | 240 | 0.07 | 150 | 16 |
| LD06X-221-XX-57-XX / 40-XX | 18 | 240 | 0.08 | 150 | 16 |
| LD06X-301-XX-57-XX / 40-XX | 24 | 240 | 0.11 | 174 | 12 |
