Orbit

Orbit

Soft light to illuminate the “me zones” which provides the perfect task light in non-workspace areas

Download Brochure

Right light that expand boundaries
icon
Add Shape & Form

Powder coated extruded aluminium suspended dome shaped luminaire in white/ black to add dome effect in your collaborative spaces-

icon
Superior Optics

High efficiency and non-yellowing PMMA diffuser adds bright illumination to spaces.

icon
Ease of Installation

Easy to mount on true ceiling with suspension wire upto one meter.

Specifications

High Efficiency Translucence (HET) diffuser

  • Aesthetically slim designed profile
  • Extruded Aluminium housing duly powder coated White OR Black outside & white inside
  • Specially designed sleek canopy integrated with suspension, Prewired up to terminal block
  • Driver is pre-wired up to terminal block on the housing
  • Technology edge with high efficacy LEDs
  • UGR<19 Diffuser
  • Specially designed, easy to install, Adjustable mounting suspension with SS wire, safety nut at gripper & wire end locks
  • Driver and accessories pre-wired up to terminal block
  • With Option of Analog / DALI dimming
  • Designed and manufactured to comply with IS 10322 part 5/Sec 1 2012

Electrical data

Catalogue Reference No.Wattage (W)CCT (K)
LM23O-481-XX-57-XW20W5700K
LM23O-671-XX-57-XW25W5700K
LM23O-821-XX-57-XW30W5700K
LM23O-481-XX-57-XB20W5700K
LM23O-671-XX-57-XB25W5700K
LM23O-821-XX-57-XB30W5700K
LM23O-481-XX-57-UW20W5700K
LM23O-671-XX-57-UW25W5700K
LM23O-821-XX-57-UW30W5700K
LM23O-481-XX-57-UB20W5700K
LM23O-671-XX-57-UB25W5700K
LM23O-821-XX-57-UB30W5700K

Also available in 4000K CCT.

XB/UB-Black Housing | XW/UW-White Housing

Lighting Scenarios

scenarios
Meeting Room
scenarios

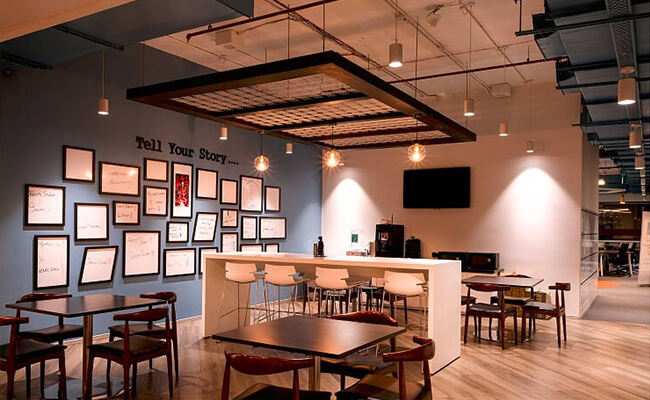

Cafeteria
scenarios

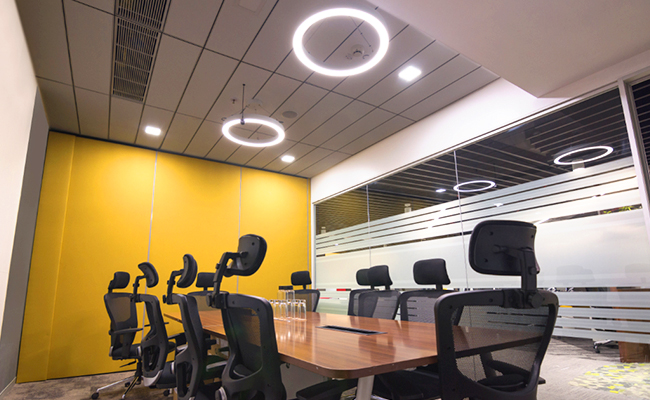

Conference Room
scenarios

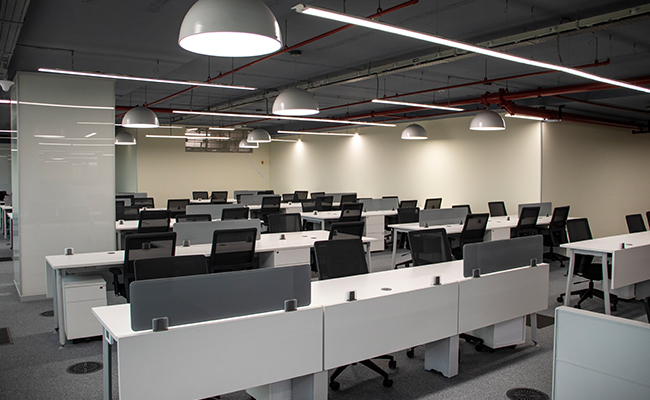

Primary Workspaces
scenarios

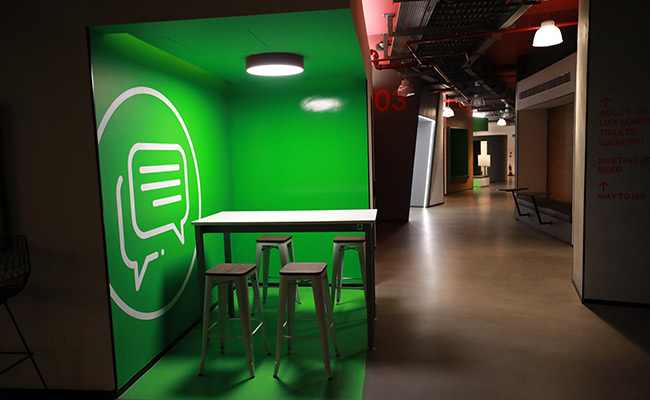

Connecting Area
