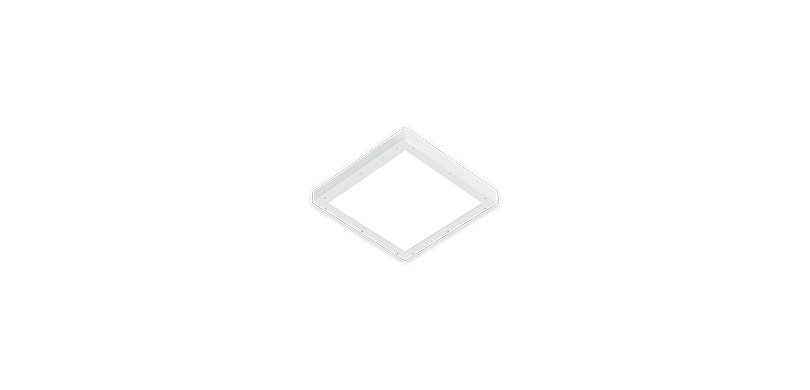

Vision BOCR

Vision BOCR

Bottom Openable Cleanroom

icon
Partial-cut ceiling installation

Revolutionary design strengthens metallic walkable ceilings, ensuring zero contamination from above

icon
Effortless setup and maintenance

Special mounting clamps allow precise, fast installation with no extra cost

icon
Upgradable LED tray

Future-ready luminaire with low Capex,ensuring minimal total cost of ownership

icon
Easy installation

Wishbone mechanism provides an easy and perfectbottom frame alignment and hinging

benefit image

Specifications

  • Class 1, Class 10 & Class 100
  • CRI 80
  • 50,000 burning hours
  • Easy maintenance
  • Non-hygroscopic XLPE gasket used for sealing
  • High durability

Electrical data

Recessed BOCR
Wattage (W)Rated Voltage (V)Main Current (A)Approx. Weight (kg)Case Lot (No.s)
302400.134.62
422400.184.62
602400.264.72
802400.354.82



Surface Mounted
Wattage (W)Rated Voltage (V)Main Current (A)Approx. Weight (kg)Case Lot (No.s)
302400.135.52
422400.185.52
602400.265.62
  • Available with screwless bottom frame, SS bottom frame and dual CCT
  • Available in monochromatic and dimmable options also
