Vision+ Teardrop

Vision+ Teardrop

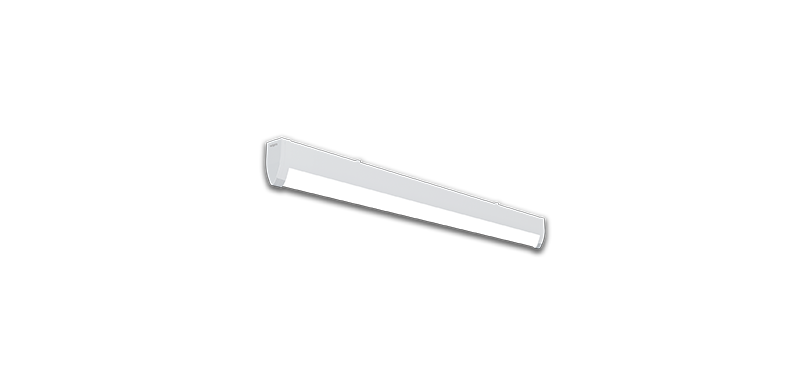

Uniquely crafted with a teardrop like design, Vision Tear Drop meets thelaminar air flow of the specialized spaces. This specially designed luminaire ensures that there are no air pockets created due to its installation and helps maintain the laminar air flow of the space.

icon
Sleek elliptical design

It meets laminar air flow, ensures no air turbulence and dust accumulation

icon
Glare-free and uniform illumination

Co-extruded housing and fresnel diffuser in polycarbonate FR V2 grade anti-UV

icon
Precise and faster installation

Specially designed stainless steel mounting clamps for mounting on 'T' Grid with 'T' bolts

icon
Available in CT cover

Suitable for standalone and continuous row installation

benefit image

Specifications

  • Class 1, Class 10 & Class 100
  • CRI 80/90
  • In-built surge protection up to 4 KV
  • High efficiency up to 160 lm/W
  • Co-extruded PC housing

Electrical data

Wattage (W)Rated Voltage (V)Main Current (A)Approx. Weight (kg)Case Lot (No.s)
322400.141.2, 1.3, 1.412
402400.171.2, 1.3, 1.412

Available in monochromatic and dimmable options also
