Arcadia

Arcadia

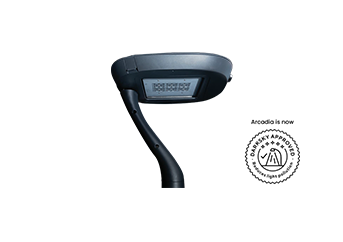

A luminaire inspired by the future of urban illumination, Arcadia breaks the monotony with its unique goose-neck shape. It captures the essence of nighttime lighting, using sleek design and technology to light up modern outdoor spaces.

Download Brochure

icon
Enhanced energy savings

With advanced high-efficacy LEDs

icon
Quick installation

With driver, SPD and accessories already wired to the terminal block

icon
Superior light dispersion

Through an advanced clear polycarbonate diffuser

icon
Optional heat dissipation

With die-cast aluminium housing with a grey polyester finish

icon
Wider light distribution

Through an advanced clear polycarbonate diffuser

icon
Durable LEDs

With on metal clad circuit boards

Specifications

  • IK07
  • 3000K, 4000K, 5700K ССТ
  • 50,000 burning hours at L70
  • CRI 70

Electrical data

Cat. No.Power (w) +/-10% Rated Voltage (VAC)Input Current (AMP)Approx. Weight (Kg)Case Lot (No’s)
LP16-461-SYM-30-XX302400.138.01
LP16-461-SYM-40-XX302400.138.01
LP16-461-SYM-57-XX302400.138.01
LP16-931-SYM-30-XX602400.259.01
LP16-931-SYM-40-XX602400.259.01
LP16-931-SYM-57-XX602400.259.01
LP16-152-SYM-30-XX1002400.428.21
LP16-152-SYM-40-XX1002400.428.21
LP16-152-SYM-57-XX1002400.428.21

*Rated system wattage and current will have tolerance as per is 16104: 2012
*For asymmetric option replace SYM with ASM
*Suitable for external pole dia. 60mm to 75mm. (Pole to be ordered separately)
