Halo Plus

Suspended unique product on aesthetics and performance. Extruded aluminum housing with microtexture powder coating. Available in Matte black and white variants.

Download Brochure

Halo Plus LED | CREATING AMBIENCE WITH A DIFFERENCE

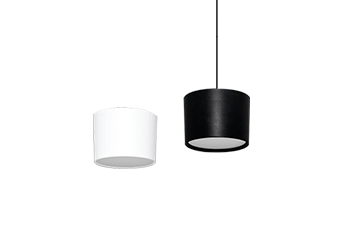

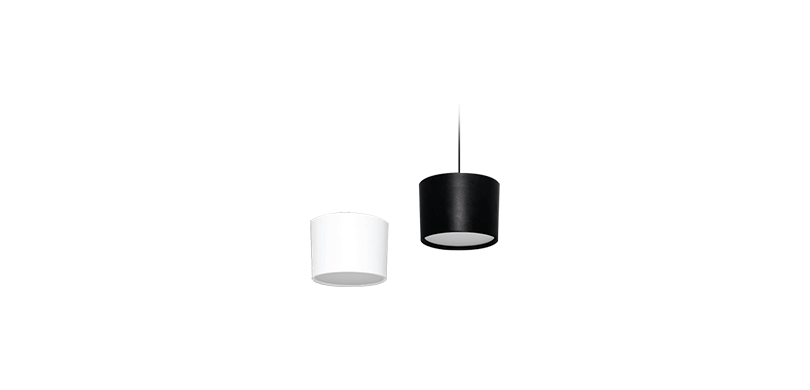

Uniquely Profiled Surface/ Suspended Downlighter

Unique product on aesthetics and performance, ideal for enriching ambience in open ceiling workspaces. It has a compact and trendy design with deep inset diffuser to maintain low UGR and has tapered profile housing with micro texture powder coating that gives a distinctive look to the product helping it create ambience with a difference.

Features and Benefits

Making the environment cheerful and vibrant.

Aesthetics

Compact and trendy design
Deep inset diffuser to maintain low UGR
Tapered profile housing with micro texture powder coating
Aesthetically integrated suspension and power cable in suspended version

Performance

Best in class LED with efficacy upto 100 Lm/W and THD <10%

Choice

Option available in color: Matte Black & White
Mounting options: Surface & Suspended

Specifications

HET PMMA diffusers provide high transmittivity
Tapered design blends well with the architecture
CRCA powder coated housing, available in both black and white colour options
In compliance to IS 10322 part 5/ Sec 1 1987

Electrical data

Future ready and smart

Cat. No.*	Power (W) ±10%	Rated Voltage (VAC)	Input current (Amp)	Case Lot (In No’s)
LD99-151-XXX57SMWH	12	240	0.052	12
LD99-151-XXX40SMWH	12	240	0.052	12
LD99-211-XXX57SMWH	15	240	0.065	12
LD99-211-XXX40SMWH	15	240	0.065	12
LD99-281-XXX57SMWH	18	240	0.080	12
LD99-281-XXX40SMWH	18	240	0.080	12
LD99-151-XXX57SMBL	12	240	0.052	12
LD99-151-XXX40SMBL	12	240	0.052	12
LD99-211-XXX57SMBL	15	240	0.065	12
LD99-211-XXX40SMBL	15	240	0.065	12
LD99-281-XXX57SMBL	18	240	0.080	12
LD99-281-XXX40SMBL	18	240	0.080	12

LD99-151-XXX57PMWH	12	240	0.052	12
LD99-151-XXX40PMWH	12	240	0.052	12
LD99-211-XXX57PMWH	15	240	0.065	12
LD99-211-XXX40PMWH	15	240	0.065	12
LD99-281-XXX57PMWH	18	240	0.080	12
LD99-281-XXX40PMWH	18	240	0.080	12
LD99-151-XXX57PMBL	12	240	0.052	12
LD99-151-XXX40PMBL	12	240	0.052	12
LD99-211-XXX57PMBL	15	240	0.065	12
LD99-211-XXX40PMBL	15	240	0.065	12
LD99-281-XXX57PMBL	18	240	0.080	12
LD99-281-XXX40PMBL	18	240	0.080	12

40 - Stands for 4000K	WH - Stands for White housing
57 - Stands for 5700K	BL - Stands for Black housing
PM - Stands for Pendent mounted	SM - Surface mounted
Also available in DALI/ Analog and white color tunable

Best Suited For

Linear-lighting Solutions

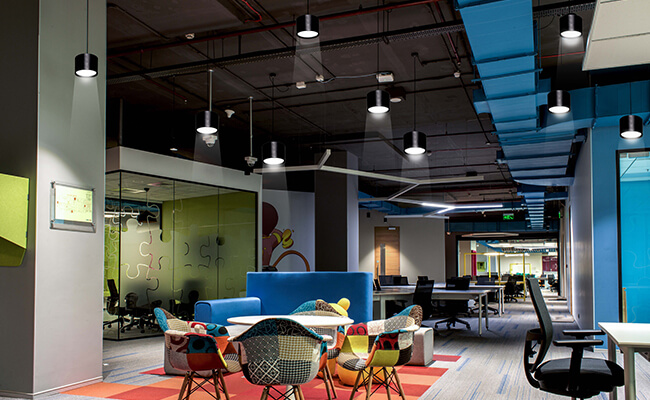

Collaborative Zones unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.

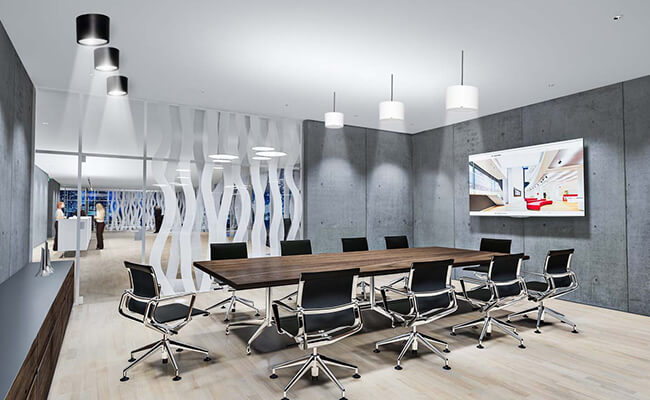

Conference Rooms unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.

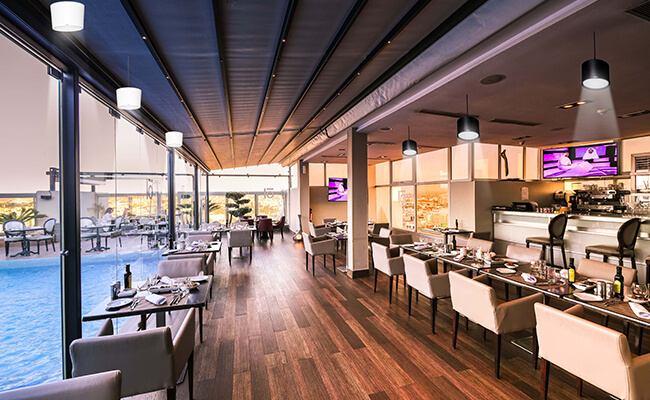

Hotels unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.

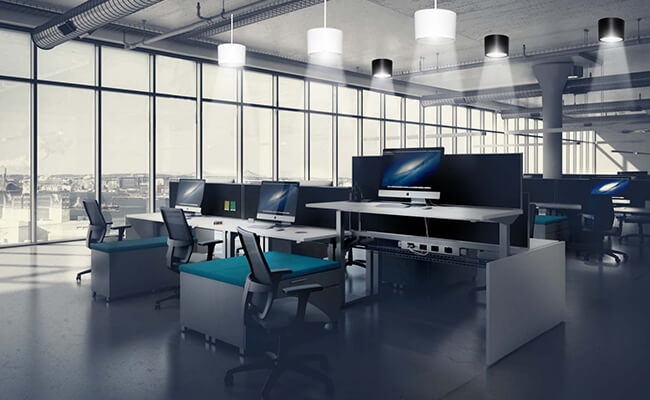

Office unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Collaborative Zones unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Conference Rooms unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Hotels unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Office unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Collaborative Zones unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Conference Rooms unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Collaborative Zones unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Conference Rooms unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Hotels unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Office unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Collaborative Zones unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Conference Rooms unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Hotels unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Office unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Collaborative Zones unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
Conference Rooms unique product on aesthetics and performance, ideal for enriching ambience in open ceiling work spaces.
