MOLLIS

REDEFINE YOUR SPACES WITH BETTER ILLUMINATION

  • High efficacy – upto 100Lm/W

  • Choice of wide illumination / reduced glare – with options of diffuser

  • Wide range of applications with IP40

  • Available for retrofit applcations

Download Brochure
MOLLIS RANGE | HIGH EFFICIENCY TECHNICAL DOWNLIGHTER
Increasing need for energy optimization demands advanced and relaible solutions for saving energy for lighting modern offices. Downlighters are growing more and more popular as they deliver significant energy savings and also are suitable for wide range applications. Wipro lighting Launches MOLLIS range with high performance and efficiency, adding options in diffuser for visual comfort.
MOLLIS | with flush diffuser for volumetric lighting

Trendy and Aesthetically designed Downlighter, with power packed performance min 100 lumens per watt, also suitable for refurbishment project. Cut out 168 mm dia.

MOLLIS X | with inset diffuser for visual comfort

Trendy and Aesthetically designed Downlighter, inset diffuser of -30 mm. Power packed performance min 100 lumens per watt , THD <10%, High efficiency LED, ensures optimum light output.

Features and Benefits
Making the environment cheerful and vibrant.
100Lm/W

Right amount of light, just, perfect for the application. Helps to reduce quantity/wattage, thus generates operational cost.

CRI>80

Ensure right color appearance of the object.

HET Diffuser

High transmitivity Diffuser (HET) delivers excellent optical performance with uniform and glare-free lighting.

Reliability

Specially designed for effective thermal management and driver per-wired upto terminal block with plug in connector for long service life and consistent performance.

THD<10%

Ensure high performance and efficiency of luminaire.

Specifications
High transmitivity diffuser
  • Pressure Die cast aluminum housing
  • Deep Inset & Flush options
  • High transmitivity diffuser
  • Specially designed, easy to install sturdy metal mounting clips
  • Driver pre-wired up to terminal block with plug in connectors
  • High efficacy LEDs
  • IS 10322 part 5/Sec 1 1987 comply
  • IP40
Electrical data
Future ready and smart
MOLLIS
Cat. No.* System
Wattage (W)		 Rated
Voltage (V)		 Mains
Current (A)		 Cut Out
Diameter (mm)		 Case Lot
(in nos.)
LD06-670-XXX-57-XX / 40-XX 6 240 0.03 110 20
LD06-111-XXX-57-XX / 40-XX 9 240 0.04 110 20
LD06-151-XXX-57-XX / 40-XX 12 240 0.05 110 20
LD06-171-XXX-57-XX / 40-XX 15 240 0.07 145 16
LD06-221-XXX-57-XX / 40-XX 18 240 0.08 145 16
LD06-301-XXX-57-XX / 40-XX 24 240 0.11 168 12
MOLLIS for Refurbishment
Cat. No.* System
Wattage (W)		 Rated
Voltage (V)		 Mains
Current (A)		 Cut Out
Diameter (mm)		 Case Lot
(in nos.)
LD06-151-XXX-57-RF / 40-RF 12 240 0.05 168 12
LD06-171-XXX-57-RF / 40-RF 15 240 0.07 168 12
LD06-221-XXX-57-RF / 40-RF 18 240 0.08 168 12
MOLLIS X
Cat. No.* System
Wattage (W)		 Rated
Voltage (V)		 Mains
Current (A)		 Cut Out
Diameter (mm)		 Case Lot
(in nos.)
LD06X-670-XX-57-XX / 40-XX 6 240 0.03 115 20
LD06X-111-XX-57-XX / 40-XX 9 240 0.04 115 20
LD06X-151-XX-57-XX / 40-XX 12 240 0.05 115 20
LD06X-171-XX-57-XX / 40-XX 15 240 0.07 150 16
LD06X-221-XX-57-XX / 40-XX 18 240 0.08 150 16
LD06X-301-XX-57-XX / 40-XX 24 240 0.11 174 12
Installation Detail
It’s Simple, Easy and Fast
MOLLIS / MOLLIS X

Provision for mounting with the help of specially designed sturdy metal clips.

MOLLIS / MOLLIS X

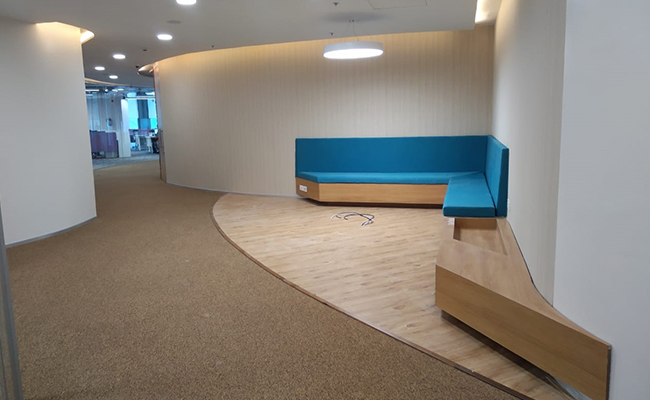

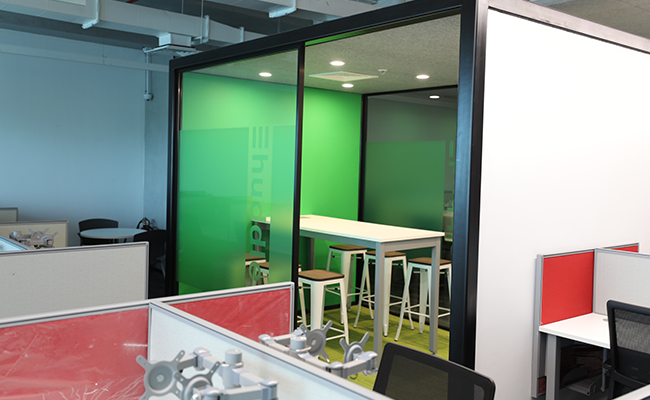

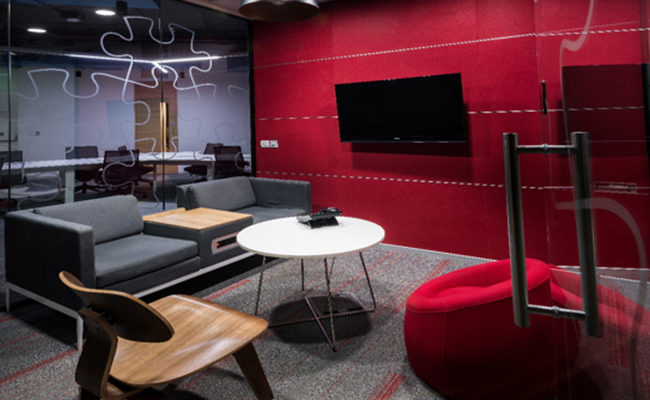

Installation Gallery
Mollis

Mollis

Mollis

Mollis

Mollis

Mollis
