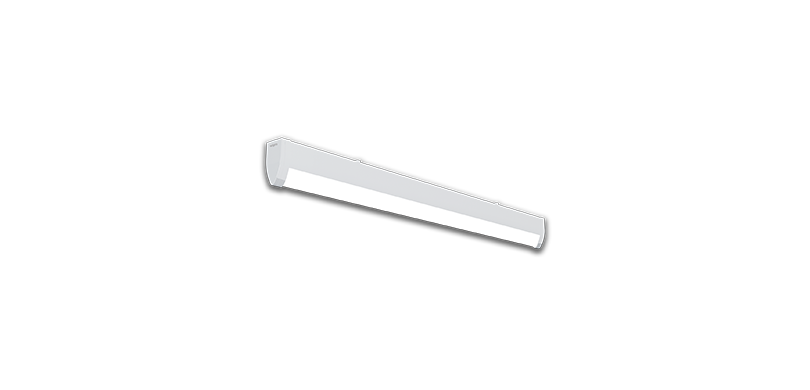

Uniquely crafted with a teardrop like design, Vision Tear Drop meets the laminar air flow of the specialized spaces. This specially designed luminaire ensures that there are no air pockets created due to its installation and helps maintain the laminar air flow of the space.
Download Brochure
It meets laminar air flow, ensures no air turbulence and dust accumulation
Co-extruded housing and fresnel diffuser in polycarbonate FR V2 grade anti-UV
Specially designed stainless steel mounting clamps for mounting on 'T' Grid with 'T' bolts
Suitable for standalone and continuous row installation
| Product Code | Luminaire Type | Wattage (W) | Rated Voltage (V) | Main Current* (A) | Approx. Weight (kg) | Case Lot (Nos.) |
|---|---|---|---|---|---|---|
| LC25-561-XXX-57-XХ | Standalone | 32 | 240 | 0.14 | 1.2 | 12 |
| LC25-561-XXX-57CTS | CT start | 32 | 240 | 0.14 | 1.3 | 12 |
| LC25-561-XXX-57CTЕ | CT end | 32 | 240 | 0.14 | 1.3 | 12 |
| LC25-561-XXX-57CTM | CT middle | 32 | 240 | 0.14 | 1.4 | 12 |
| LC25-701-XXX-57-XX | Standalone | 40 | 240 | 0.17 | 1.2 | 12 |
| LC25-701-XXX-57CTS | CT start | 40 | 240 | 0.17 | 1.3 | 12 |
| LC25-701-XXX-57CTE | CT end | 40 | 240 | 0.17 | 1.3 | 12 |
| LC25-701-XXX-57СТМ | CT middle | 40 | 240 | 0.17 | 1.4 | 12 |
• Codes with CT -Suitable for continues row installation
• 65 Represents 6500K ССТ
• *Mains current will have tolerance as per IS 16104: 2012
• Available in monochromatic and dimmable options
