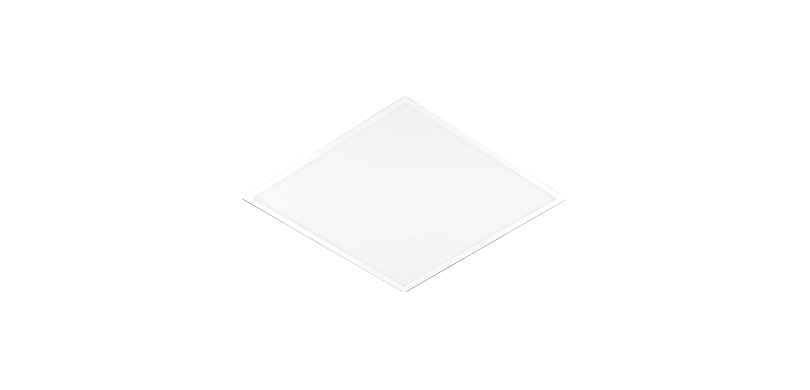

Immaculate NXG

Immaculate NXC is an aesthetic luminaire that provides uniform and wider light distribution. With an option of glare-free prismatic and high-efficiency translucence diffusers that deliver an impeccably soothing effect on the eyes, Immaculate NXG is distinctively designed with corrosion-free, slim, and sleek lightweight material. The contemporary lighting solution is ideal for green buildings and indoor applications.

Download Brochure

Enhanced aesthetics

Slim and sleek profile with no visible hardware on external surface

Effective light distribution

High-efficacy LEDs with High-Efficiency Translucence (HET) diffuser and UGR<19 diffuser as an option for optimum glare-free output

Hassle-free maintenance

Easy installation and long service life with an externally connected driver

Superior performance

Lightweight and corrosion-free housing made of CRCA & frame in aluminium duly powder coated in white, suitable for modern interiors

Specifications

Color temperature available in 4000K and 5700K
UGR & HET diffuser
High light output
50,000 burning hours @ 170
High quality with long service life
DAL driver compatible

Electrical data

Cat. No.	Power(W)+/- 10%	Rated Voltage (VAC)	*Mains Current (A)	Case Lot (Nos.)	Approx. Unit Weight (kg)
CRC010R024HP57G3	24	240	0.10	6	1.4
CRC010R030HP57G3	30	240	0.13	6	1.4
CRC010R036HP57G3	36	240	0.16	6	1.4
CRC010R040HP57G3	40	240	0.17	6	1.4

For HE variants, replace HP with HE
Replace G3 with G4 for higher warranty
For UGR variants, add UG before G3
For surface mounting, order surface frame CRC0-2X2-SM-FRAME separately

For DALI driver variants, add DA before G3
Replace 57 with 40 for 4000K CCT
For DALI driver variants in UGR, add DUG before G3

*Rated current will have tolerance as per is 16104: 2012
