Orbit Ring

Orbit Ring

ORBIT | Introducing unique elements of circle to the space with Orbit

Downlights That up the Vibe of Workspaces

Download Brochure

Right light that expand boundaries
icon
Add Shape & Forms

Powder-coated extruded aluminium suspended circular luminaire in white/ black to add curl effect in your spaces-

icon
Superior Optics

High efficiency and non-yellowing PMMA diffuser adds bright illumination to spaces.

icon
Ease of Installation

Easy to mount on true ceiling with suspension wire upto one meter.

Specifications

High Efficiency Translucence (HET) diffuser

  • Aesthetically slim designed profile
  • Extruded Aluminium housing duly powder coated White OR Black outside & white inside
  • Specially designed sleek canopy integrated with driver, suspension, Pre-wired up to terminal block
  • Technology edge with high efficacy LEDs
  • High Efficiency Translucence (HET) diffuser
  • Specially designed, easy to install, Adjustable mounting suspension with SS wire, safety nut at gripper & wire end locks
  • With Option of Analog / DALI dimming
  • Designed and manufactured to comply with IS 10322 part 5/Sec 1 2012

Electrical data

Cat. No.Dim “ΦA”Power (W)+/- 10%Rated VoltageMains Current (A)Case Lot (Nos)Unit Weight (kg)
LM23OR-621-XX57-XW600252400.1014.9
LM23OR-621-AN57-XW600252400.1014.9
LM23OR-621-DA57-XW600252400.1014.9
LM23OR-781-XX57-XW800302400.1316.9
LM23OR-781-DA57-XW800302400.1316.9
LM23OR-621-XX57-XB600252400.1014.9
LM23OR-621-AN57-XB600252400.1014.9
LM23OR-621-DA57-XB600252400.1014.9
LM23OR-781-XX57-XB800302400.1316.9
LM23OR-781-DA57-XB800302400.1316.9
LM23OR-621-XX40-XW600252400.1014.9
LM23OR-621-AN40-XW600252400.1014.9
LM23OR-621-DA40-XW600252400.1014.9
LM23OR-781-XX40-XW800302400.1316.9
LM23OR-781-DA40-XW800302400.1316.9
LM23OR-621-XX40-XB600252400.1014.9
LM23OR-621-AN40-XB600252400.1014.9
LM23OR-621-DA40-XB600252400.1014.9
LM23OR-781-XX40-XB800302400.1316.9
LM23OR-781-DA40-XB800302400.1316.9

*XW - Stands for Housing and canopy in White colour

*XB - Stands for Housing and canopy in Black colour

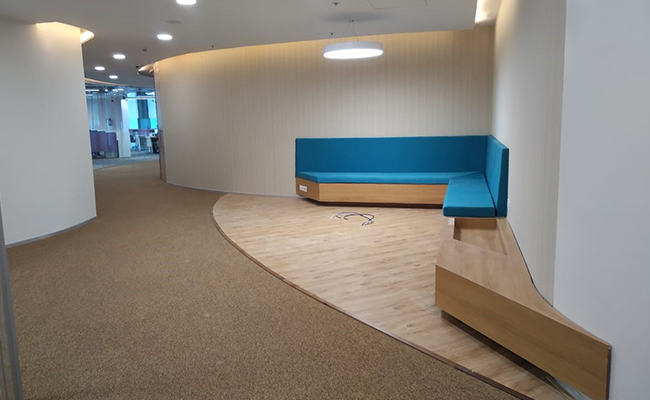

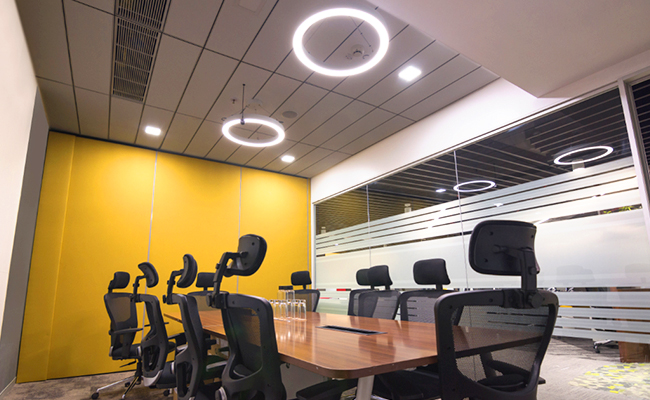

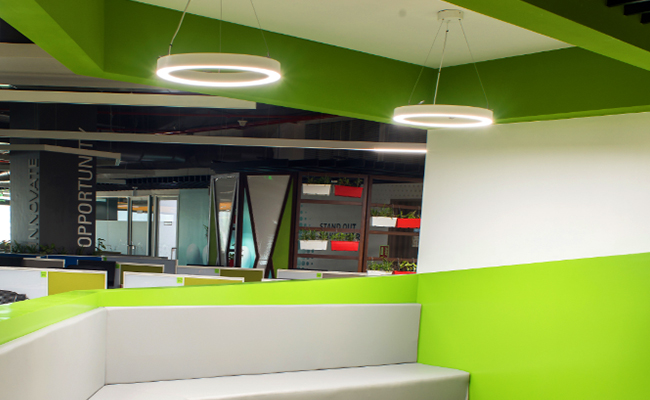

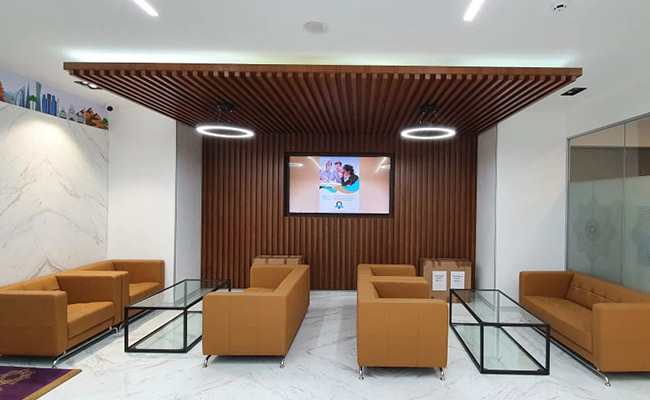

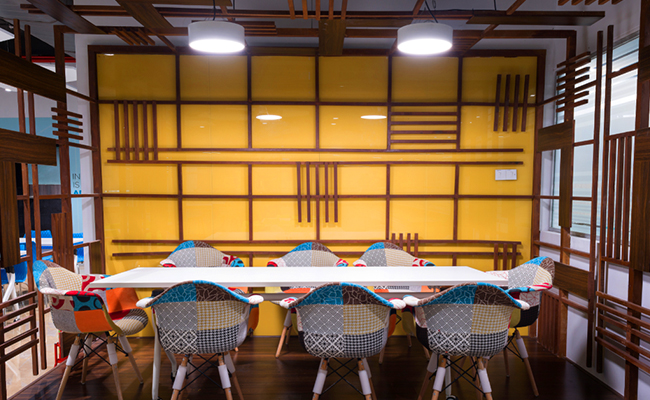

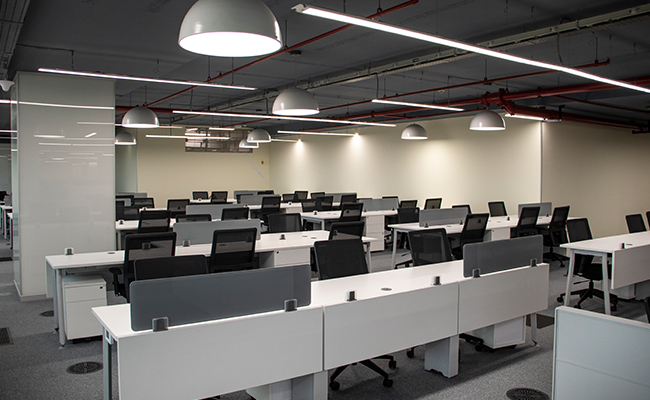

Lighting Scenarios
