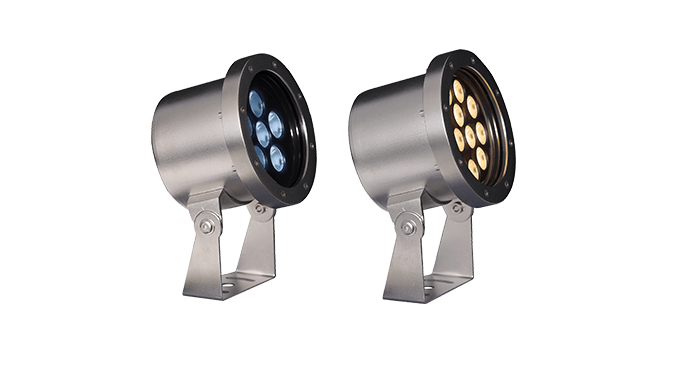

Under Water Luminaire (6W-36W)

Under Water Luminaire (6W-36W)

Premium outdoor architectural solutions

Specifications

Al Die cast Housing , powder coated
Glare free light distribution.
Tempered Frosted Step Glass
High efficiency, long life LEDs.
High purity Lenses for superior performance

Electrical data

Cat No.	LED Wattage (W)	Voltage	Beam Angle	CCT	Driver Code
LU03-950-030-30-XX	6W	24V DC	300	3000K	LPV-35-24
LU03-211-030-30-XX	18W	24V DC	300	3000K	LPV-35-24
LU03-371-030-30-XX	36W	24V DC	300	3000K	LPV-35-24

Driver to be ordered separately. Also available in 6000K CCT.

Cat No.	LED Wattage (W)	Voltage	Beam Angle	CCT	Driver Code
LU03-950-030-CC-XX	9W	24V DC	300	RGB	LPV-35-24
LU03-211-030-CC-XX	18W	24V DC	300	RGB	LPV-35-24
LU03-371-030-CC-XX	30W	24V DC	300	RGB	LPV-35-24

Driver + DMX Controller to be ordered separately.
