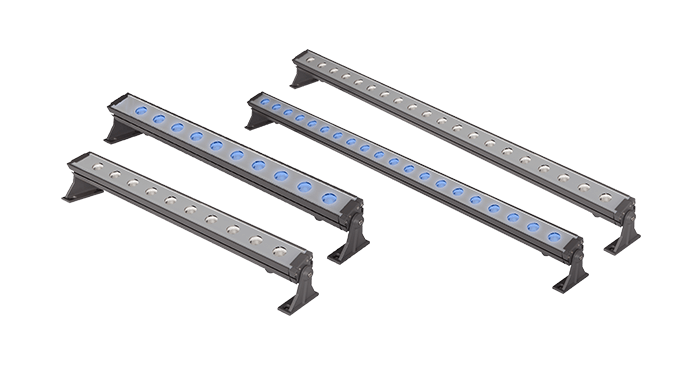

Linear Wall Washer LED (20W-40W)

Linear Wall Washer LED (20W-40W)

Premium outdoor architectural solutions




Download Brochure

Specifications

  • Construction In Extruded Aluminum Powder Coated
  • High Power High Lumen Output LED
  • Glass And Housing Silicon Sealed
  • Temperd Glass, Optical Lenses
  • Dust Tight and Jet Proof
  • Glare Free Light Distribution

Electrical data

Cat No.LED Wattage (W)VoltageBeam AngleCCTDriver Code
LF01-181-015-30-0520W24V DC1503000KLPV-35-24
LF01-181-030-30-0520W24V DC3003000KLPV-35-24
LF01-361-015-30-1040W24V DC1503000KLPV-60-24
LF01-361-030-30-1040W24V DC3003000KLPV-60-24
Also available in 6000K CCT. Driver to be ordered separately.



Cat No.LED Wattage (W)VoltageBeam AngleCCTDriver Code
LF01-181-015-CC-0520W24V DC150RGBLPV-35-24
LF01-181-030-CC-0520W24V DC300RGBLPV-35-24
LF01-361-015-CC-1040W24V DC150RGBLPV-60-24
LF01-361-030-CC-1040W24V DC300RGBLPV-60-24
Driver + DMX Controller to be ordered separately.
